Need help with this problem!

Please do not post the same answer as many other ones are the same and are not completed right as of the questions on this problem.

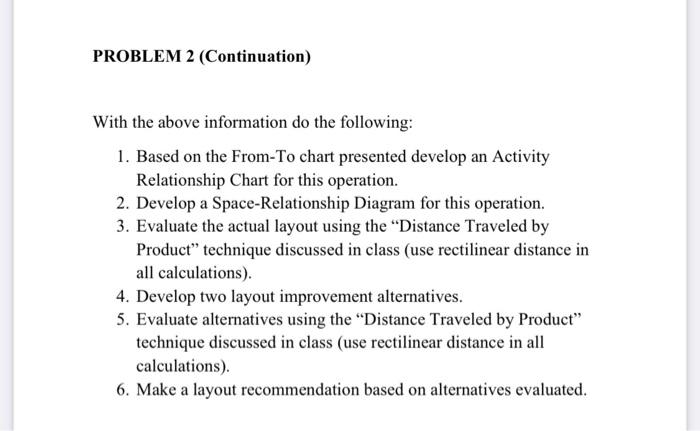

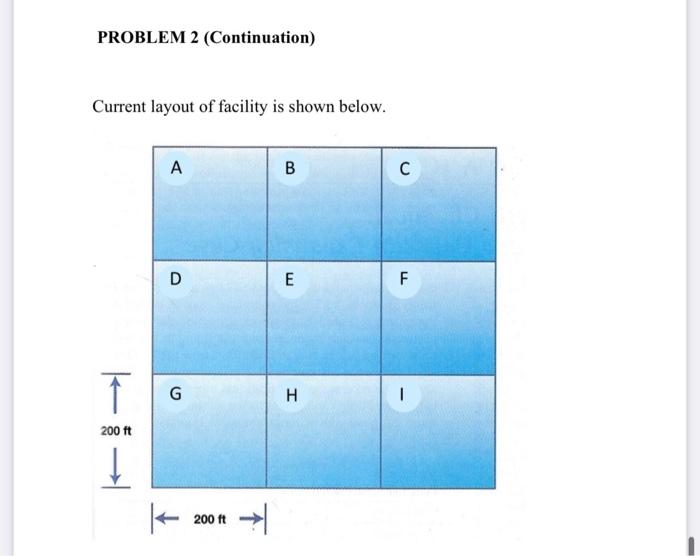

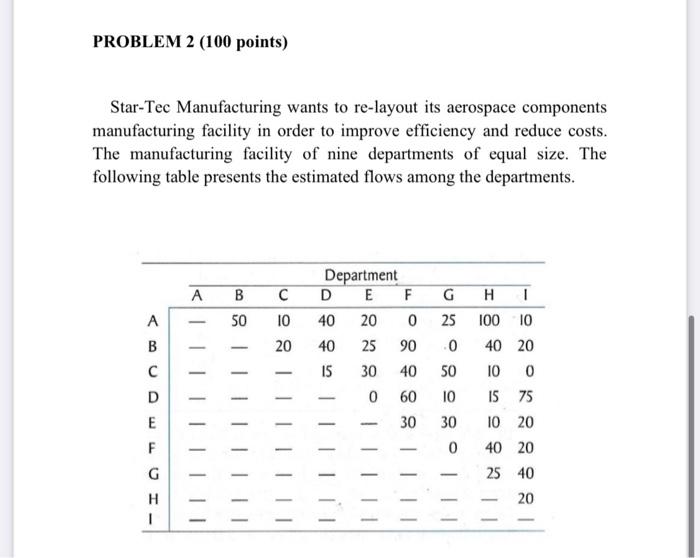

Star-Tec Manufacturing wants to re-layout its aerospace components manufacturing facility in order to improve efficiency and reduce costs. The manufacturing facility of nine departments of equal size. The following table presents the estimated flows among the departments. Current layout of facility is shown below. With the above information do the following: 1. Based on the From-To chart presented develop an Activity Relationship Chart for this operation. 2. Develop a Space-Relationship Diagram for this operation. 3. Evaluate the actual layout using the "Distance Traveled by Product" technique discussed in class (use rectilinear distance in all calculations). 4. Develop two layout improvement alternatives. 5. Evaluate alternatives using the "Distance Traveled by Product" technique discussed in class (use rectilinear distance in all calculations). 6. Make a layout recommendation based on alternatives evaluated
