Needs to be implemented using JAVA , please i need help

You need to create the following class that extends JFrame:

public class ServerGUI extends JFrame

{

//Data Fields go here

//Methods go here

}

Data Fields

You should declare data fields that correspond to the status label, textFields, and the JTextArea as shown below (feel free to implement any other data fields that you like):

private JLabel status; //Initialized to Not Connected

private String[] labels = {"Port #", "Timeout"};

private JTextField[] textFields = new JTextField[labels.length];

private JTextArea log;

Methods

You should implement the following methods (feel free to implement any other methods that you like):

public ServerGUI(String title)

Constructor creates the Server GUI shown above. Input parameter title is used for setting the title bar of the Server GUI.

Getters

public JTextField getTextFieldAt(int index)

Retrieves the corresponding JTextField based in input parameter index. The following valid values for index should be utilized:

0 Port # JTextField

1 Timeout JTextField

The purpose of these two JTextFields will become clear in lab2out.

public JLabel getStatus()

Returns the top JLabel of the GUI (initialized to Not Connected)

public JTextArea getLog()

Returns the JTextArea pertaining to the Servers Log. The log area contains all data received from the client as informational messages

Event Handling for JButtons

For now, the following actions should occur when pressing the JButtons

When pressing Listen display Listen Button Pressed on the Console

When pressing Close display Close Button Pressed on the Console

When pressing Stop display Stop Button Pressed

When pressing Quit close the GUI (same as pressing the Red X in upper right corner)

Guidelines for Main

ClientGUI and ServerGUI must have their own main methods. The main methods only need to instantiate an object pertaining to each respective class.

The ClientGUIs main needs at a minimum the following statement:

new ClientGUI(args[0]);

Where args[0] corresponds to the one command line argument pertaining to the desired title of the Clients GUI

The ServerGUIs main needs at a minimum the following statement:

new ServerGUI(args[0]);

Where args[0] corresponds to the one command line argument pertaining to the desired title of the Servers GUI

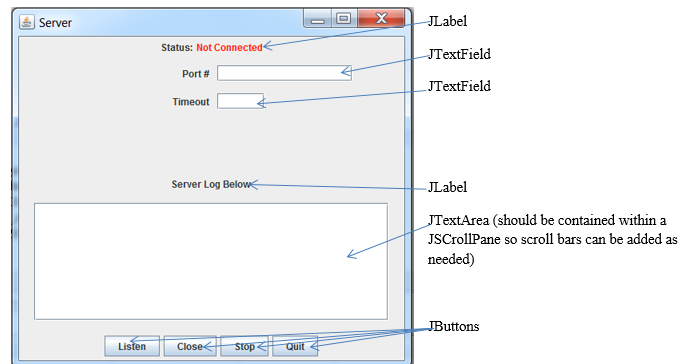

JLabel JTextField JTextField Server Status: Not Connected Port # Timeout Server Log Below JLabel JTextArea(should be contained within a JSCrollPane so scroll bars can be added as needed) JButtons Listen
