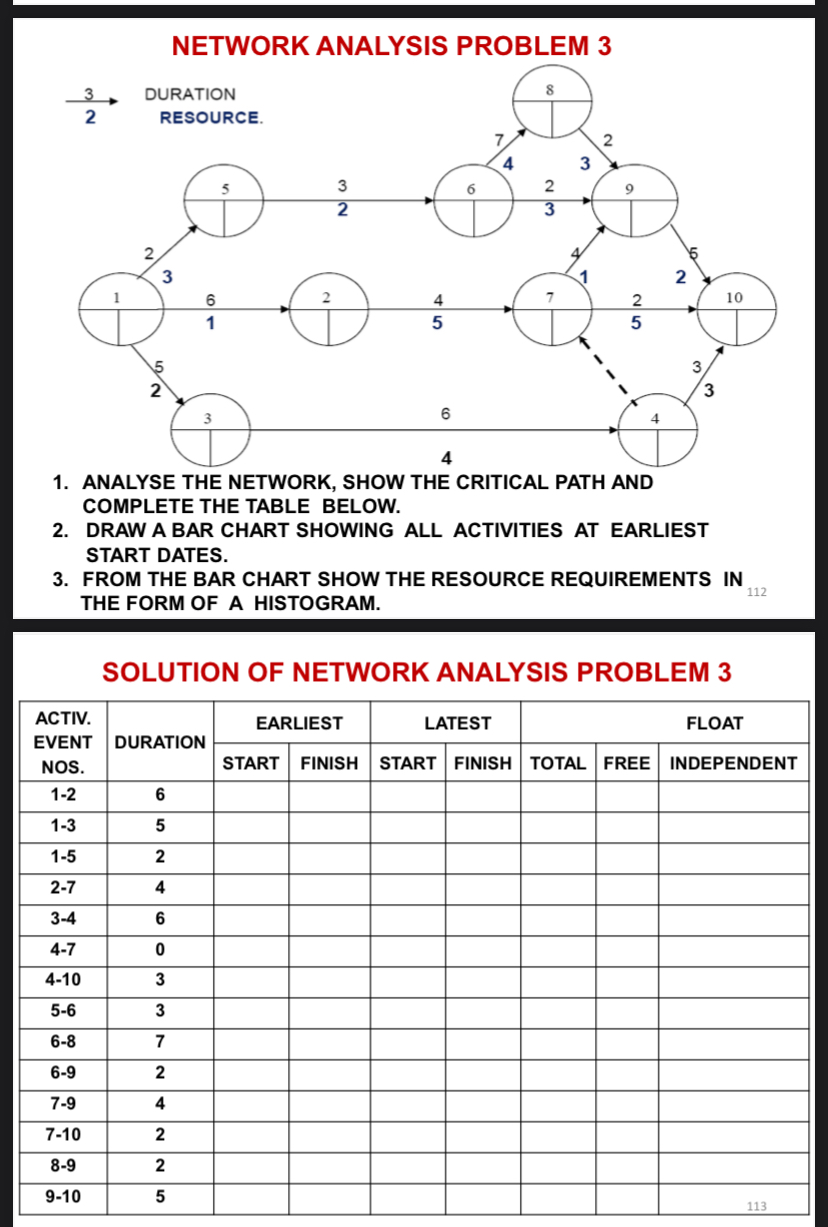

NETWORK ANALYSIS PROBLEM $3$

DURATION

RESOURCE.

ANALYSE THE NETWORK, SHOW THE CRITICAL PATH AND COMPLETE THE TABLE BELOW.

DRAW A BAR CHART SHOWING ALL ACTIVITIES AT EARLIEST START DATES.

FROM THE BAR CHART SHOW THE RESOURCE REQUIREMENTS IN THE FORM OF A HISTOGRAM.

$112$

SOLUTION OF NETWORK ANALYSIS PROBLEM $3$

$\backslash$table$[[\backslash$table$[[$ACTIV$.],[$EVENT$],[$NOS$.]],$DURATION,EARLIEST,LATEST,FLOAT$],[$START$,$FINISH,START,FINISH,TOTAL,FREE,INDEPENDENT$],[1-2,6,,,,,,,],[1-3,5,,,,,,,],[1-5,2,,,,,,,],[2-7,4,,,,,,,],[3-4,6,,,,,,,],[4-7,0,,,,,,,],[4-10,3,,,,,,,],[5-6,3,,,,,,,],[6-8,7,,,,,,,],[6-9,2,,,,,,,],[7-9,4,,,,,,,],[7-10,2,,,,,,,],[8-9,2,,,,,,,],[9-10,5,,,,,,,]]$
