Question: ( Not usable if the device clock comput Synchronization Control bit When TMR 3 CS = 1 : Time left 1 : 5 9 :

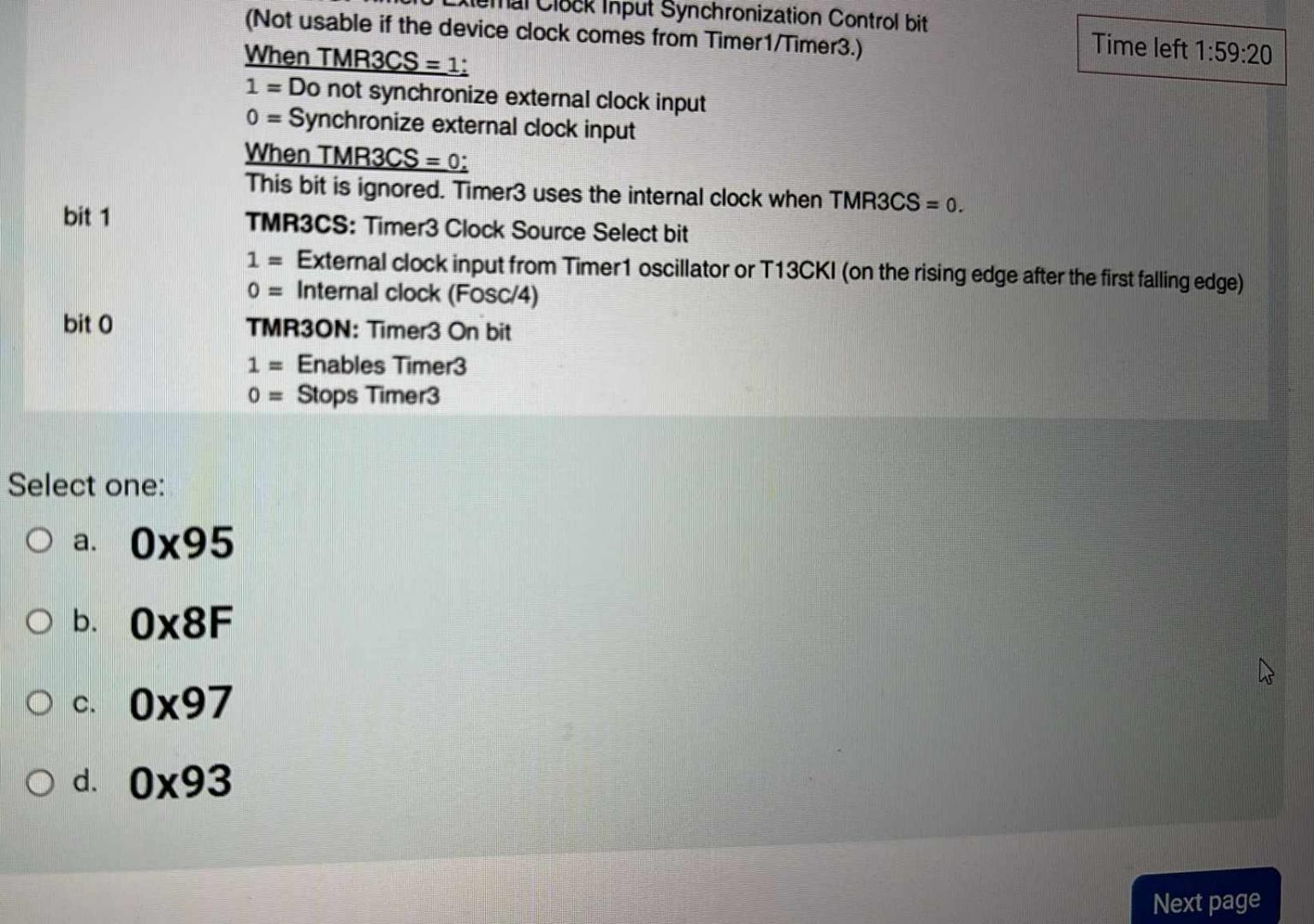

(Not usable if the device clock comput Synchronization Control bit
When TMR3CS =1 :
Time left 1:59:20
1= Do not synchronize external clock input
0= Synchronize external clock input
When TMR3CS =0 :
This bit is ignored. Timer3 uses the internal clock when TMR3CS =0.
bit 1
TMR3CS: Timer3 Clock Source Select bit
1= External clock input from Timer1 oscillator or T13CKI (on the rising edge after the first falling edge)
0= Internal clock (Fosc/4)
bit 0
TMR3ON: Timer3 On bit
1= Enables Timer3
0= Stops Timer3
Select one:
a.095
b.08F
c.097
d.093
 (Not usable if the device clock comput Synchronization Control bit When
