Question: Note: Electrical Engineering / Computer Architecture Please Clear Hand Write! The following table contains a column for each control signal. Each row represents an RTL

Note: Electrical Engineering / Computer Architecture

Please Clear Hand Write!

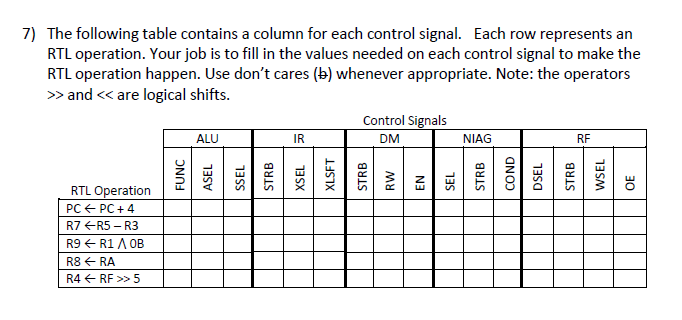

The following table contains a column for each control signal. Each row represents an RTL operation. Your job is to fill in the values needed on each control signal to make the RTL operation happen. Use don't cares (b) whenever appropriate. Note: the operators and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
