Question: note : for this id number (220202946) 1.a. (25 points) Fill the truth table according to your student ID such that 8 bit F= studentid

note : for this id number (220202946) 1.a. (25 points) Fill the

note : for this id number (220202946)

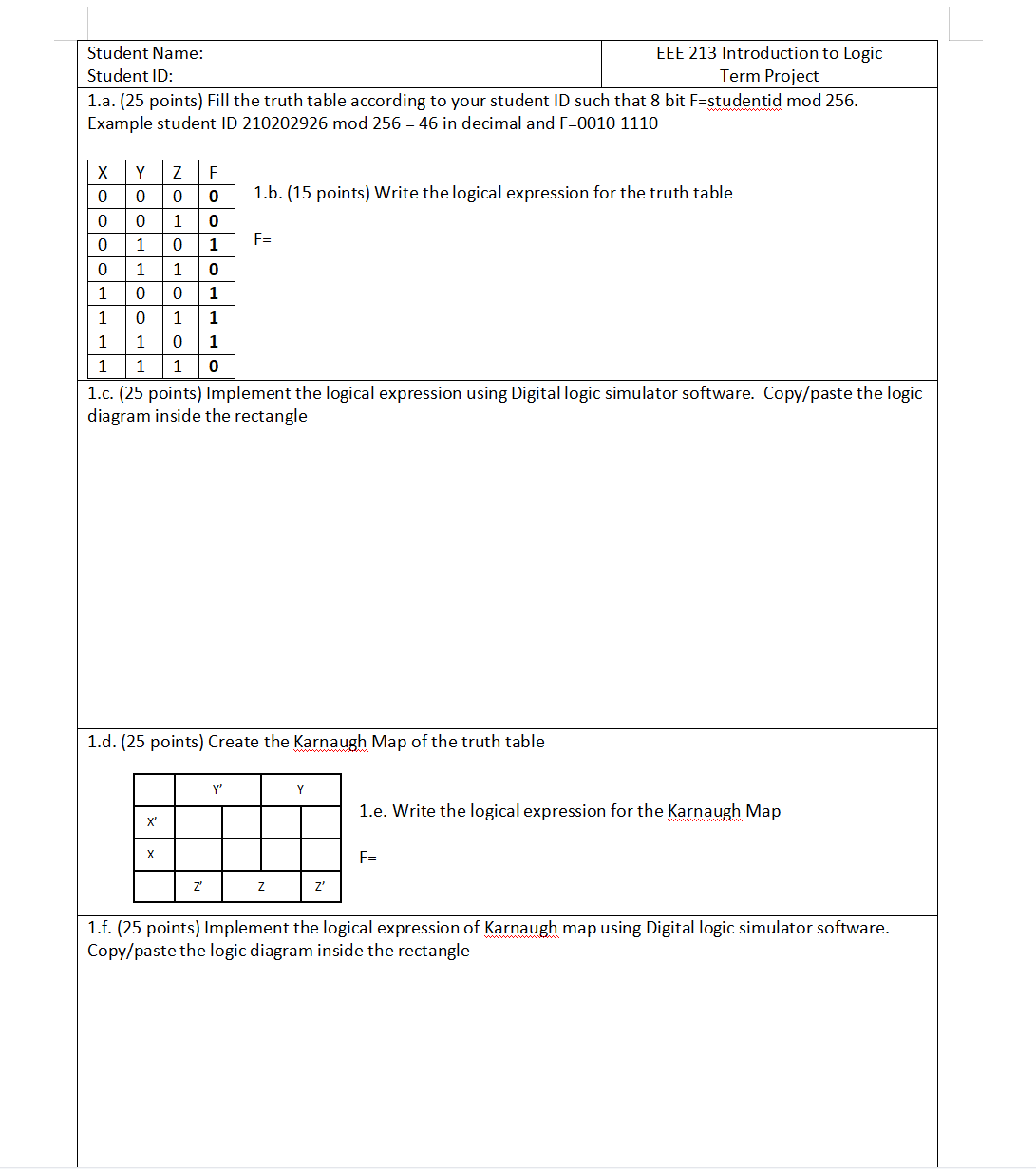

1.a. (25 points) Fill the truth table according to your student ID such that 8 bit F= studentid mod 256. Example student ID 210202926 mod 256=46 in decimal and F=00101110 1.b. (15 points) Write the logical expression for the truth table F= 1.c. (25 points) Implement the logical expression using Digital logic simulator software. Copy/paste the logic diagram inside the rectangle 1.d. (25 points) Create the Karnaugh Map of the truth table 1.e. Write the logical expression for the Karnaugh Map F= 1.f. (25 points) Implement the logical expression of Karnaugh map using Digital logic simulator software. Copy/paste the logic diagram inside the rectangle

Step by Step Solution

There are 3 Steps involved in it
