NOTE: JUST IN CASE YOU CAN READ. Here is a copy of the problem.

Tailwind inc produces high quality but expensive training shoes for runners. The Tailwind shoes ,which sells for $210, contains both gas and liquid filled compartments to provide more stability and better protection against knee, foot, and back injuries. Manufacturing the shoes requires 10 separate task .There are 400 minutes available for manufacturing the shoes in the plan each . Daily demand is 62. The information for the task is as follows:

task: A B C. D E F G H I J Performance time (mins): 1 / 3/ 2/ 4 / 1/3/2/6/2/3/ Predecessors: - / A/B/B/C,D/A/F/G / E,F/ I

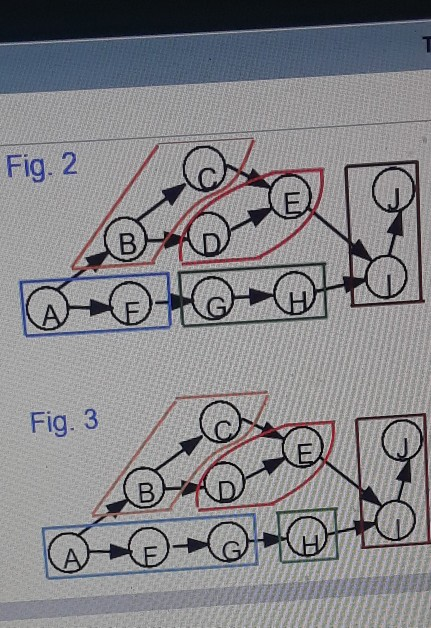

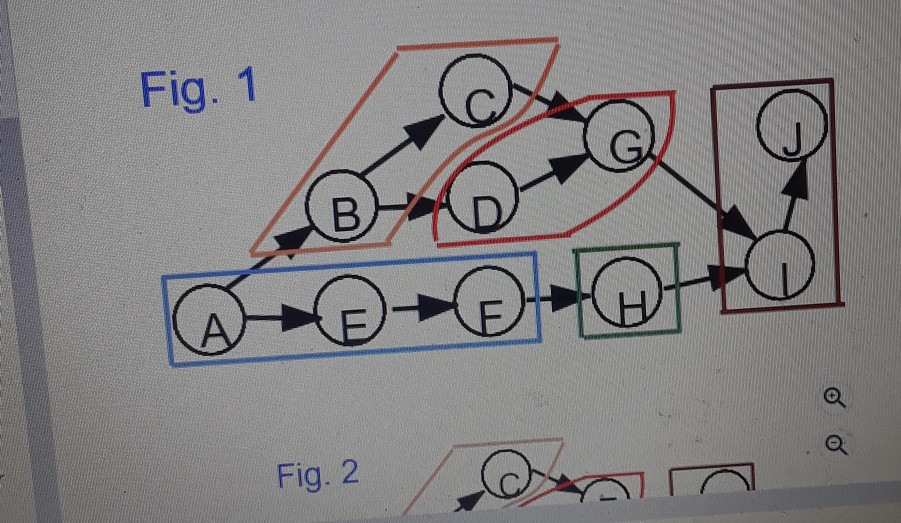

a-b ) The correct precedence relationship with one of the possible assignments of task using the ranked positioned weight to workstations is shown in FIG 1. FIG 2 FIG 3

C)The efficiency of the assembly line with 5 workstations shown in the figure chosen above = .......% (enter your response as a percentage rounded to one decimal place)

d) The idle time for the assembly line per cycle =..... minute(s ) ( Enter your response as a whole number

Question. Il Task Performance Time (mins) Predecessors COUWLO- WNNW-ANW EH a-b) The correct precedence relationship with one of the possible assignments of tasks using the "ranked positioned weight to workstations is shown in % enter you c) The efficiency of the assembly line with 5 workstations shown in the figure chosen above= response as a percentage rounded to one decimal place) d) The idle time for the assembly line per cycle = minute(s) enter your response as a whole number Enter your answer in each of the answer boxes. Save for Later Type here to search o il m*@@@ 0 Fig. 2 Fig. 2 15,0000 Fig. 3 2
