Question: Note: This problem is optional and not graded. It is not part of the homework set and does not carry any points. The rigid L

Note: This problem is optional and not graded. It is not part of the homework set and does not carry any points.

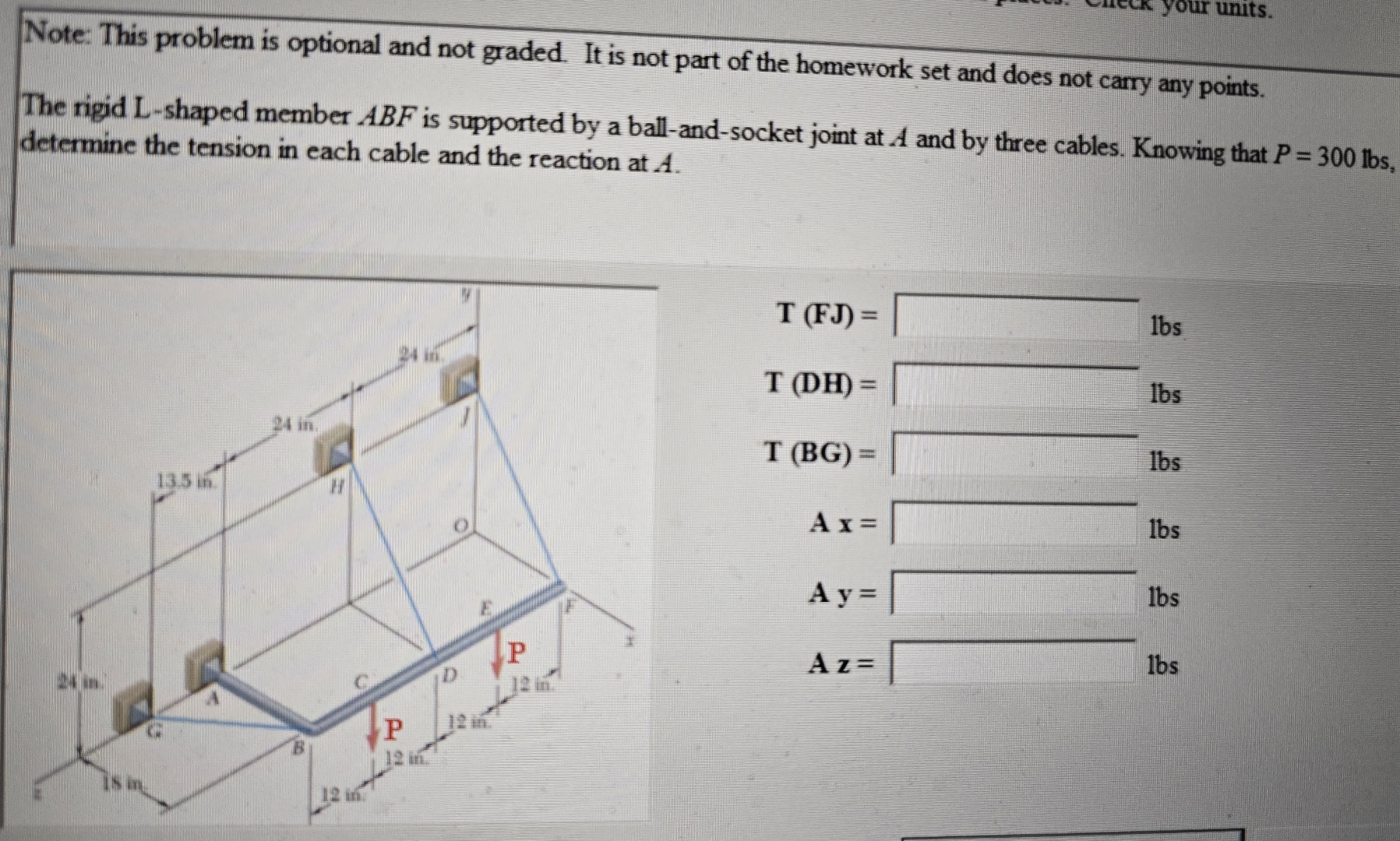

The rigid L-shaped member ABF is supported by a ball-and-socket joint at A and by three cables. Knowing that P=300lbs, determine the tension in each cable and the reaction at A.
T(FJ)=
lbs
T(DH)=
T(BG)=
bs
Ax=
lbs
Ay=
lbs
Az=
lbs
lbs
Note: This problem is optional and not graded. It

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
