Question: Now its visible Question 1 and Question 2 are based on the following ER model, which is illustrated in standard ER notations but has been

Now its visible Question 1 and Question 2 are based on the Now its visible

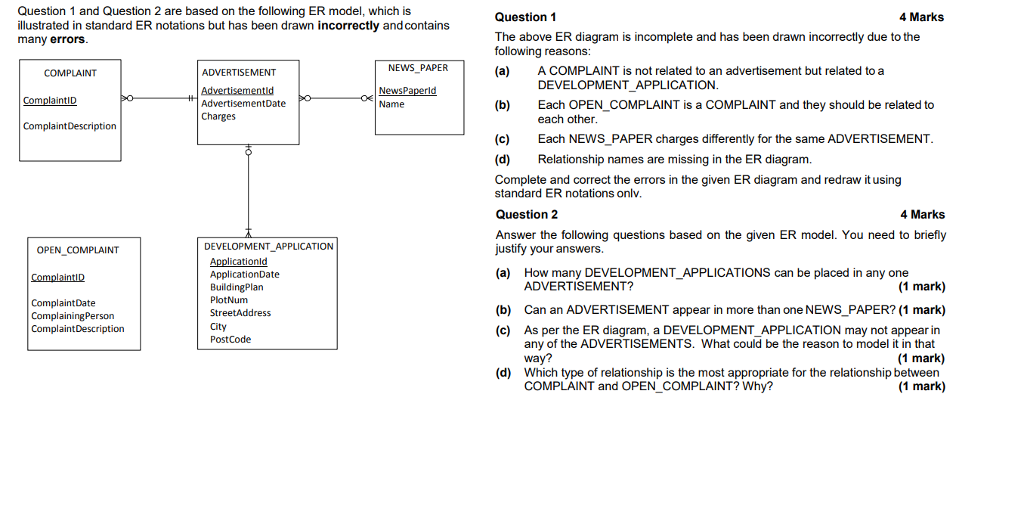

Question 1 and Question 2 are based on the following ER model, which is illustrated in standard ER notations but has been drawn incorrectly andcontains many errors Question 1 The above ER diagram is incomplete and has been drawn incorrectly due to the following reasons: (a)A COMPLAINT is not related to an advertisement but related to a 4 Marks NEWS PAPER ADVERTISEMENT DEVELOPMENT APPLICATION NewsPaperld AdvertisementDate Charges (b) Each OPEN COMPLAINT is a COMPLAINT and they should be related to each other ComplaintDescription (c) ach NEWS_PAPER charges differently for the same ADVERTISEMENT (d)Relationship names are missing in the ER diagram. Complete and correct the errors in the given ER diagram and redraw it using standard ER notations onlv Question 2 Answer the following questions based on the given ER model. You need to briefly 4 Marks DEVELOPMENT APPLICATION justify your answers. (a) How many DEVELOPMENTAPPLICATIONS can be placed in any one OPEN COMPLAINT Applicationld ApplicationDate BuildingPlan PlotNum StreetAddress City PostCode ComnlaintID ADVERTISEMENT? (1 mark) ComplaintDate ComplainingPerson ComplaintDescription (b) Can an ADVERTISEMENT appear in more than one NEWS_PAPER? (1 mark) (c) As per the ER diagram, a DEVELOPMENT APPLICATION may not appear in any of the ADVERTISEMENTS. What could be the reason to model it in that wa (1 mark) (d) Which type of relationship is the most appropriate for the relationship between COMPLAINT and OPEN_COMPLAINT? Why? (1 mark)
