Question: In the figure, two circular arcs have radii a = 14.9 cm and b = 10.8 cm, subtend angle 8 = 79.0, carry current

In the figure, two circular arcs have radii a = 14.9 cm

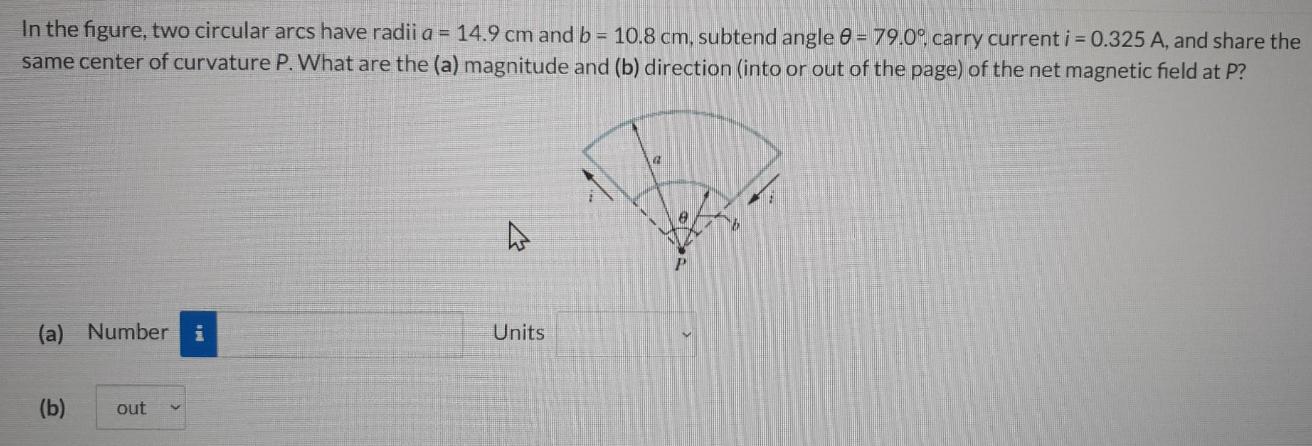

In the figure, two circular arcs have radii a = 14.9 cm and b = 10.8 cm, subtend angle 8 = 79.0, carry current i = 0.325 A, and share the same center of curvature P. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at P? (a) Number i (b) out Units 2 P

Step by Step Solution

★★★★★

3.40 Rating (159 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To solve this problem we need to calculate the magnetic field at point P due to the two circular arcs Well use the formula for the magnetic field due to a segment of a currentcarrying circular arc ... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
