Question: One way to generate a sine wave using a microcontroller is using a lookup table and interrupts. An internal timer interrupts the processor periodically. In

One way to generate a sine wave using a microcontroller is

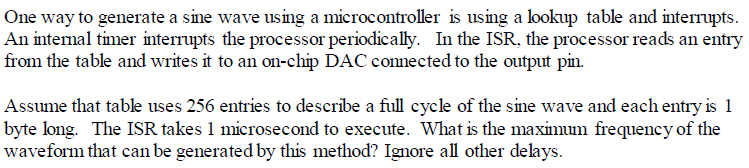

One way to generate a sine wave using a microcontroller is using a lookup table and interrupts. An internal timer interrupts the processor periodically. In the ISR, the processor reads an entry from the table and writes it to an on-chip DAC connected to the output pin. Assume that table uses 256 entries to describe a full cycle of the sine wave and each entry is 1 byte long. The ISR takes 1 microsecond to execute. What is the maximum frequency of the waveform that can be generated by this method? Ignore all other delays

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
