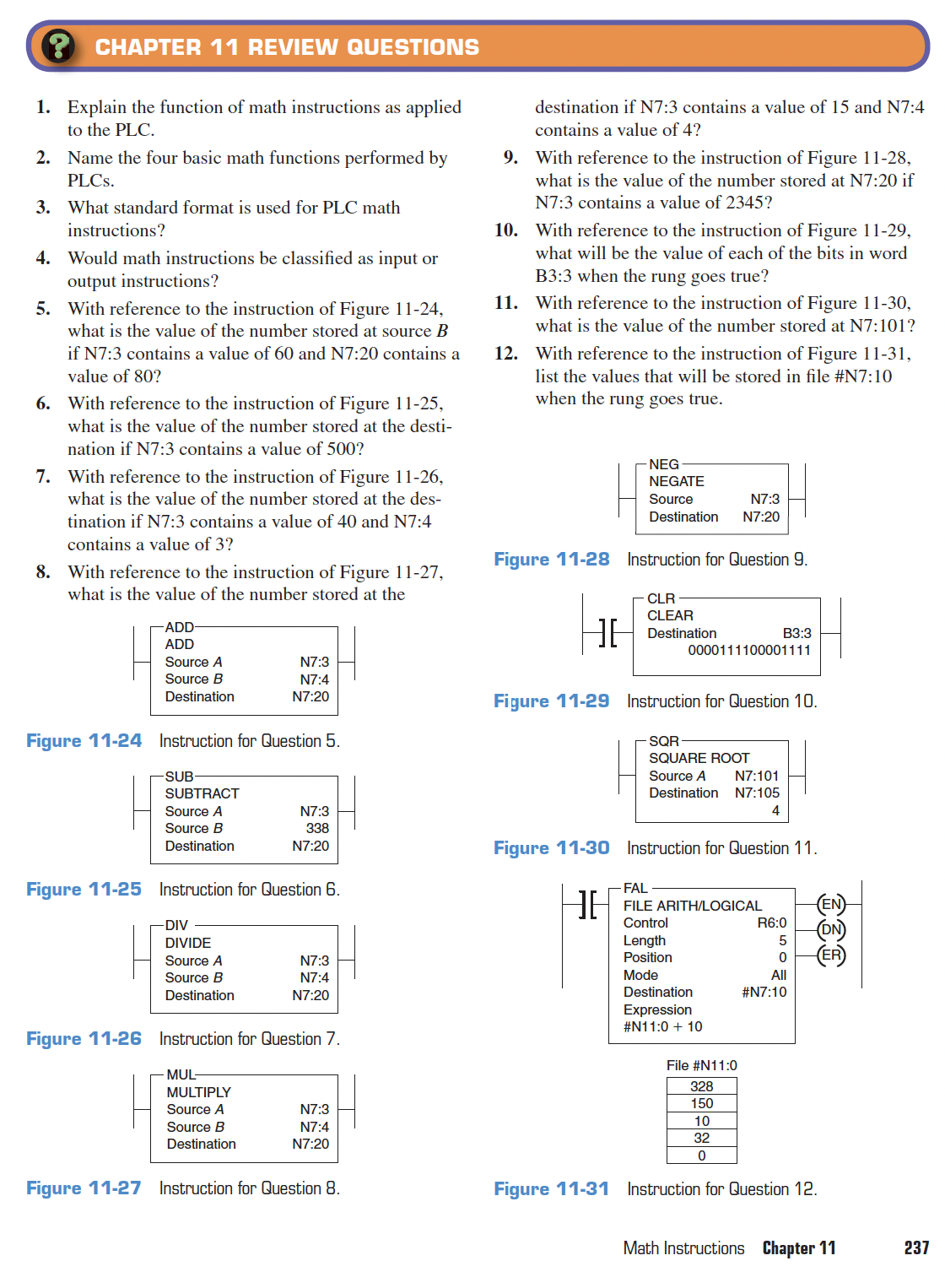

$($Only need #$5$ through #$10.$ This is Chapter $11$ Review questions of Frank$\_$D$.\_$Petruzella$\_$Programmable$\_$Logic book$)$

Explain the function of math instructions as applied

to the PLC$.$

Name the four basic math functions performed by

PLCs$.$

What standard format is used for PLC math

instructions?

Would math instructions be classified as input or

output instructions?

With reference to the instruction of Figure $11-24,$

what is the value of the number stored at source $B$

if $N7$:$3$ contains a value of $60$ and $N7$:$20$ contains a

value of $80?$

With reference to the instruction of Figure $11-25,$

what is the value of the number stored at the desti$-$

nation if $N7$:$3$ contains a value of $500?$

With reference to the instruction of Figure $11-26,$

what is the value of the number stored at the des$-$

tination if N$7$:$3$ contains a value of $40$ and N$7$:$4$

contains a value of $3?$

With reference to the instruction of Figure $11-27,$

what is the value of the number stored at the

Figure $11-24$ Instruction for Question $5.$

Figure $11-25$ Instruction for Question $6.$

Figure $11-26$ Instruction for Question $7.$

Figure $11-27$ Instruction for Question $8.$

destination if $N7$:$3$ contains a value of $15$ and N$7$:$4$

contains a value of $4?$

With reference to the instruction of Figure $11-28,$

what is the value of the number stored at $N7$:$20$ if

$N7$ : $3$ contains a value of $2345?$

With reference to the instruction of Figure $11-29,$

what will be the value of each of the bits in word

B$3$:$3$ when the rung goes true?

With reference to the instruction of Figure $11-30,$

what is the value of the number stored at N$7$:$101?$

With reference to the instruction of Figure $11-31,$

list the values that will be stored in file #N$7$:$10$

when the rung goes true.

Figure $11-28$ Instruction for Question $9.$

Figure $11-30$ Instruction for Question $11.$

File #N$11$:$0$

Figure $11-31$ Instruction for Question $12.$
