only require question 2 to be done based on the information from question 8 in the above picture.

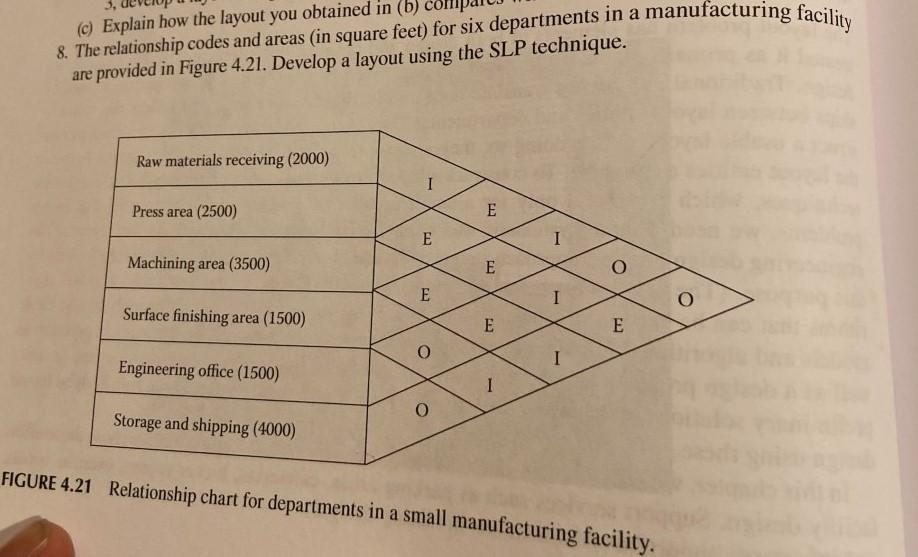

(c) Explain how the layout you obtained in (b) 8. The relationship codes and areas in square feet) for six departments in a manufacturing facility are provided in Figure 4.21. Develop a layout using the SLP technique. Raw materials receiving (2000) Press area (2500) E - E I Machining area (3500) E E I o Surface finishing area (1500) E E o Engineering office (1500) 1 0 Storage and shipping (4000) FIGURE 4.21 Relationship chart for departments in a small manufacturing facility. 2. Repeat Exercise 4.8 using CORELAP. Assume all departments be equal in size. CV values: V(A) = 125; V(E) = 25; V(I) = 5; V(O) = 1; V(U) = 0; V(X) = -125 - Since there is no A relationship, treat E's like A's. Partial adjacency: a = 0.5
