Question: Operations Management Time Required (weeks) 3 4 Immediate Activity Predecessors A Start B Start A, B D B E F D, E 3 5 4

Operations Management

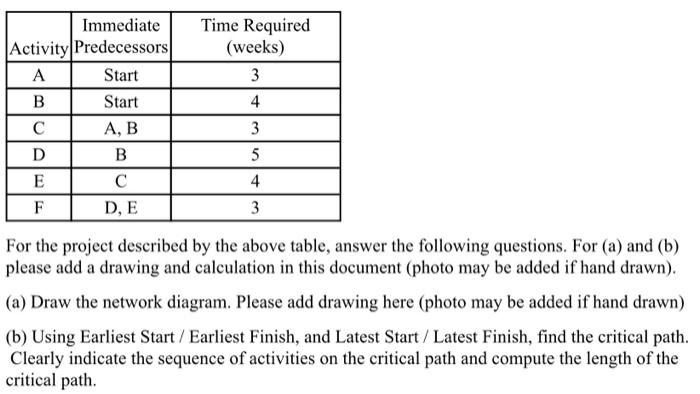

Time Required (weeks) 3 4 Immediate Activity Predecessors A Start B Start A, B D B E F D, E 3 5 4 3 For the project described by the above table, answer the following questions. For (a) and (b) please add a drawing and calculation in this document (photo may be added if hand drawn). (a) Draw the network diagram. Please add drawing here (photo may be added if hand drawn) (b) Using Earliest Start / Earliest Finish, and Latest Start / Latest Finish, find the critical path. Clearly indicate the sequence of activities on the critical path and compute the length of the critical path

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
