Question: P 1 . ( 1 0 marks ) Find ( V _ { o } ) in the circuit of the figure and

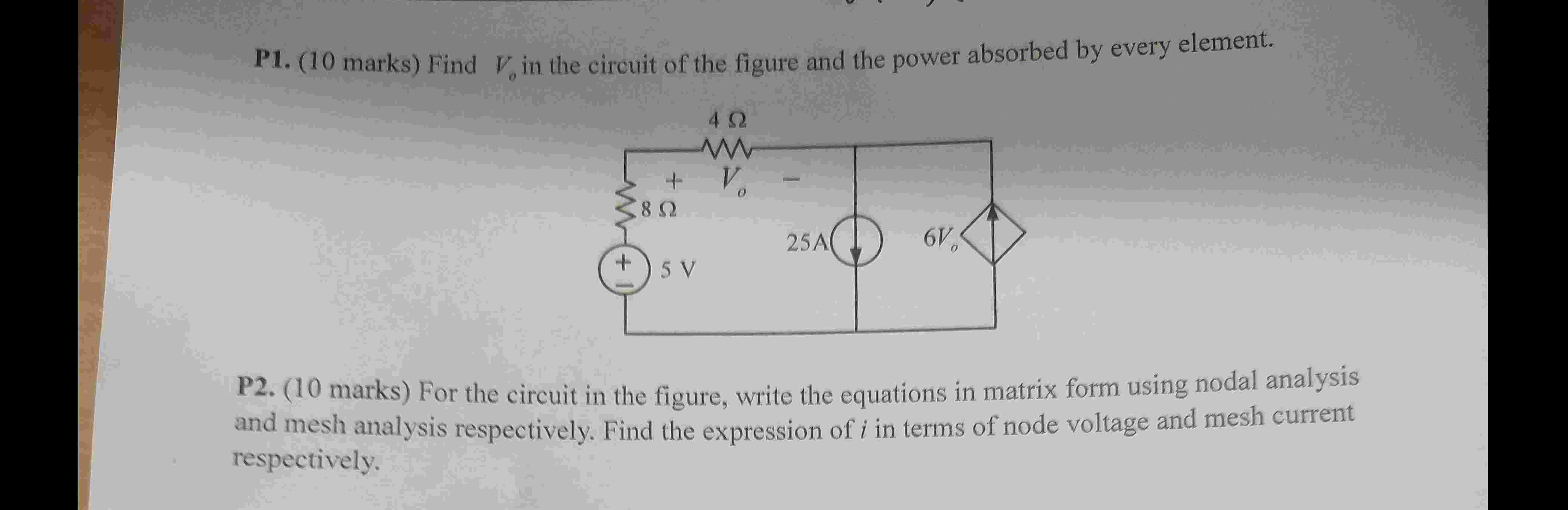

P1.(10 marks ) Find \( V_{o}\) in the circuit of the figure and the power absorbed by every element.
P2.(10 marks) For the circuit in the figure, write the equations in matrix form using nodal analysis and mesh analysis respectively. Find the expression of \( i \) in terms of node voltage and mesh current respectively.
P 1 . ( 1 0 marks ) Find \ ( V _ { o } \ ) in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
