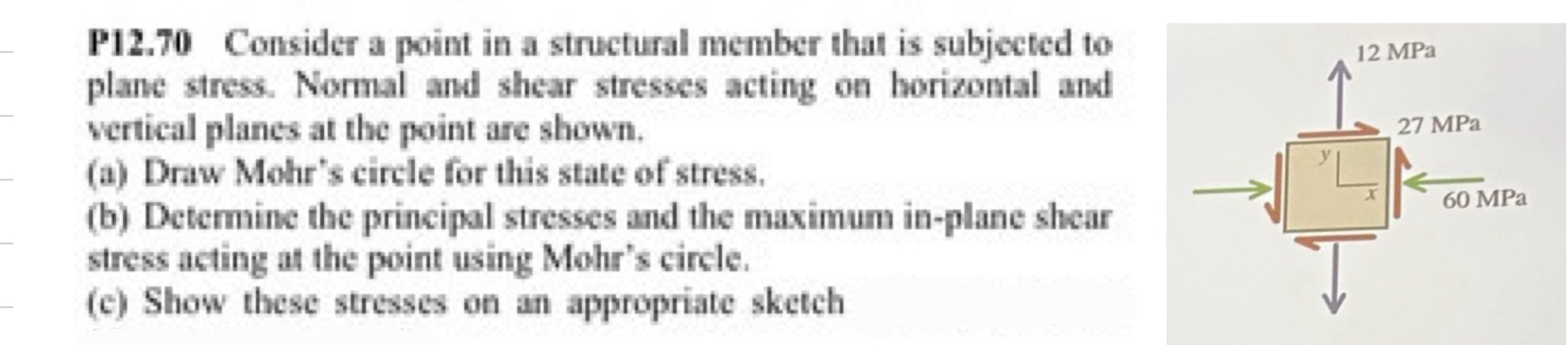

P$12\mathrm{.}70$ Consider a point in a structural member that is subjected to plane stress. Normal and shear stresses acting on borizontal and vertical planes at the point are shown.

$($a$)$ Draw Mohr's circle for this state of stress.

$($b$)$ Determine the principal stresses and the maximum in$-$plane shear stress acting at the point using Mohr's circle.

$($c$)$ Show these stresses on an appropriate sketch
