Question: * P 1 3 . 2 4 . Consider the circuit shown in Figure P 1 3 . 2 4 . a . Find an

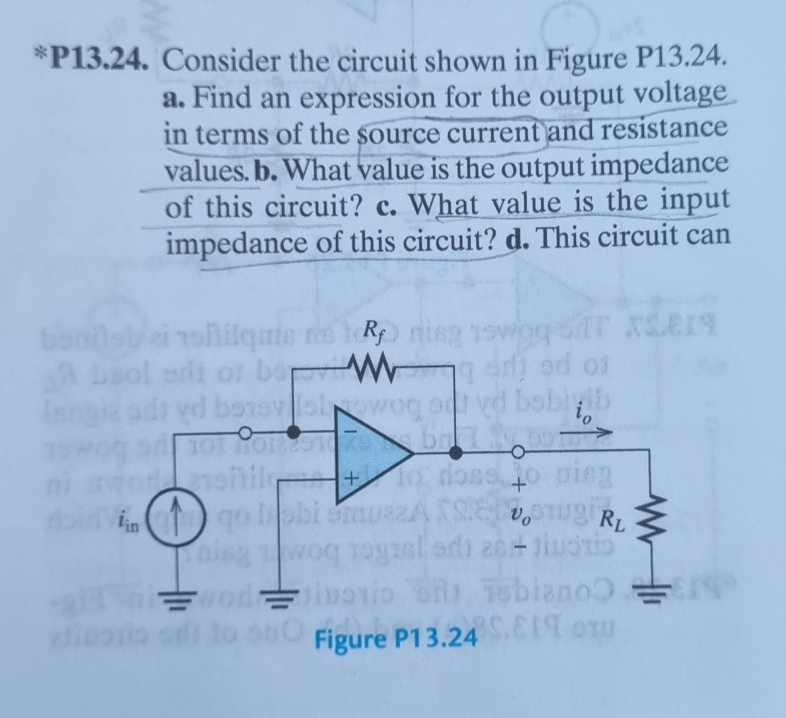

*P13.24. Consider the circuit shown in Figure P13.24. a. Find an expression for the output voltage in terms of the source current and resistance values. b. What value is the output impedance of this circuit? c. What value is the input impedance of this circuit? d. This circuit can
Figure P13.24
* P 1 3 . 2 4 . Consider the circuit shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
