Question: P 1 5 . 6 6 . a . Reflect the resistances and voltage sources to the left - hand side of the circuit shown

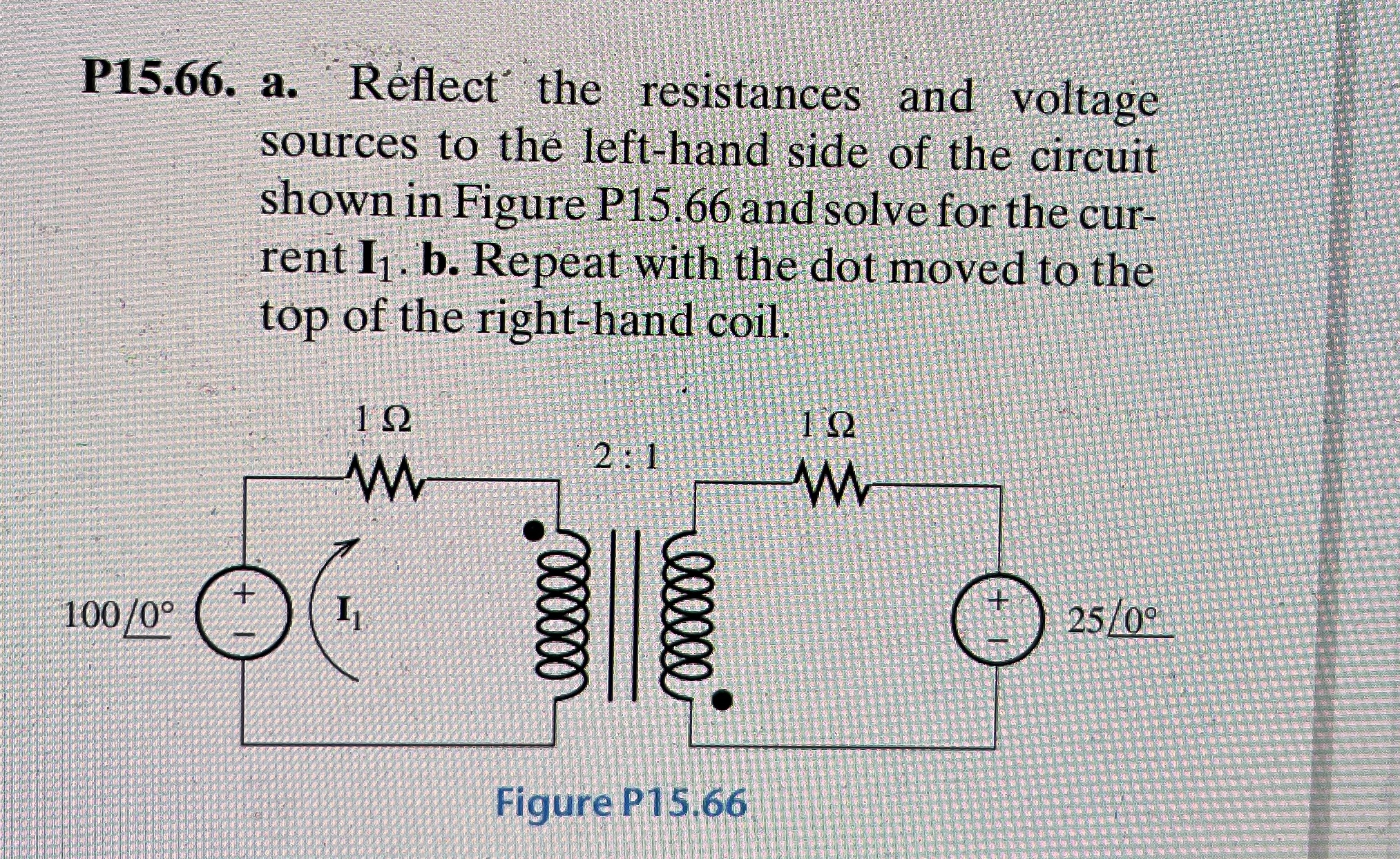

P15.66. a. Reflect the resistances and voltage sources to the left-hand side of the circuit shown in Figure P15.66 and solve for the current I1*b. Repeat with the dot moved to the top of the right-hand coil.
Figure P15.66
P 1 5 . 6 6 . a . Reflect the resistances and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
