Question: P 1 6 . 3 8 . A 6 0 - Hz 4 8 0 - V - rms 2 0 0 - hp delta

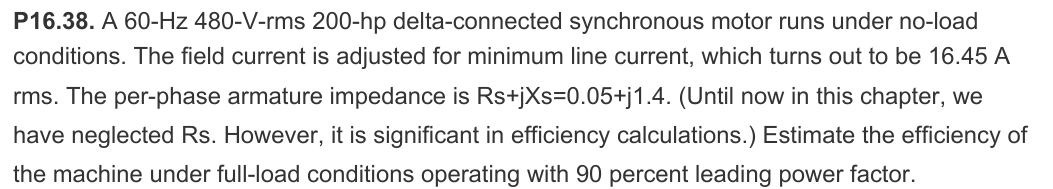

P16.38. A 60-Hz 480-V-rms 200-hp delta-connected synchronous motor runs under no-load conditions. The field current is adjusted for minimum line current, which turns out to be 16.45 A rms. The per-phase armature impedance is \(\mathrm{Rs}+\mathrm{j} X \mathrm{~s}=0.05+\mathrm{j}1.4\).(Until now in this chapter, we have neglected Rs. However, it is significant in efficiency calculations.) Estimate the efficiency of the machine under full-load conditions operating with 90 percent leading power factor.
P 1 6 . 3 8 . A 6 0 - Hz 4 8 0 - V - rms 2 0 0 -
