Question: P 1 . In the linkage shown, analytically determine 3 , 4 , 5 and position of link 6 respect the Absolut coordinates in A

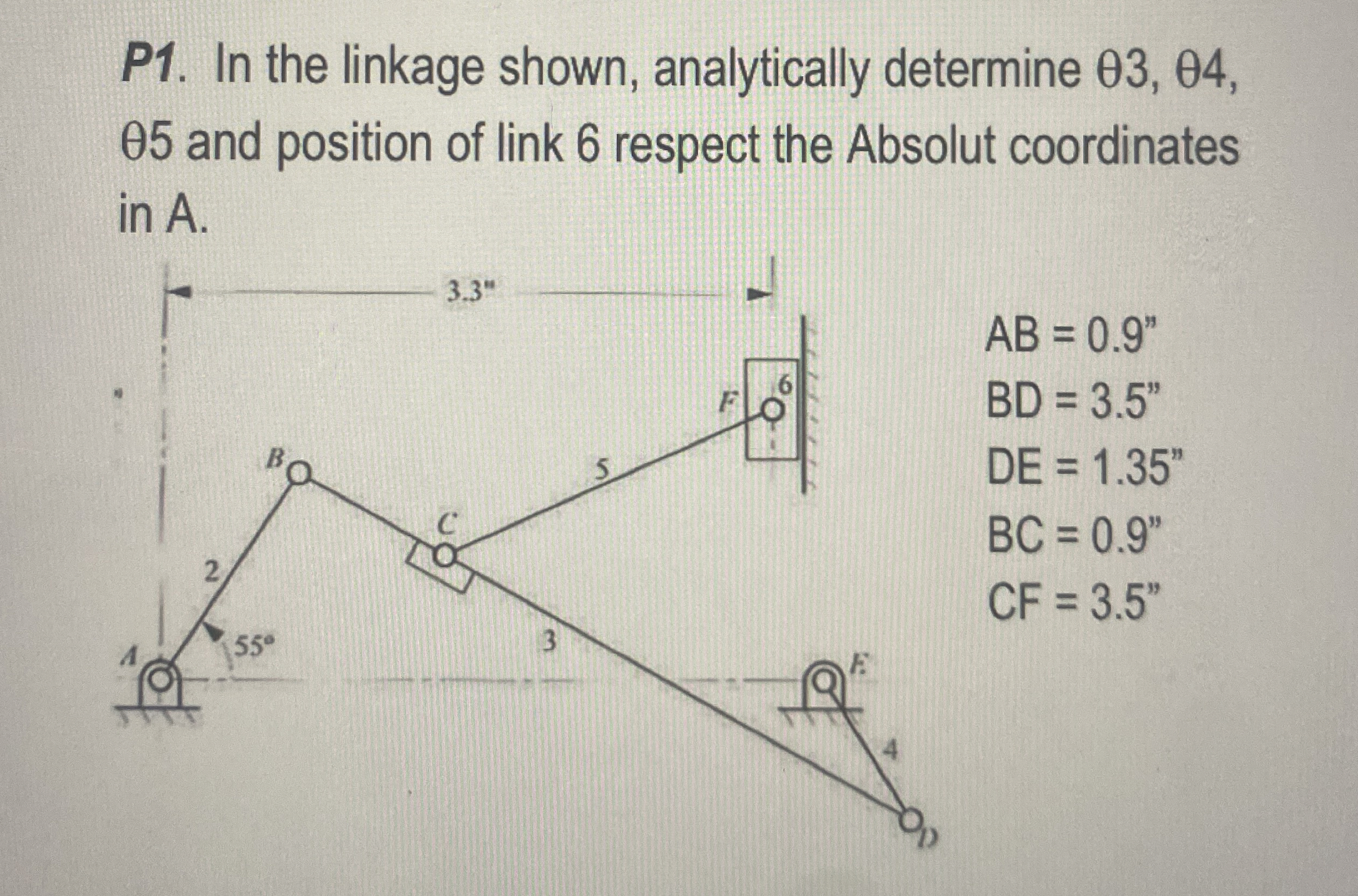

P1. In the linkage shown, analytically determine 3,4,5 and position of link 6 respect the Absolut coordinates in A .
AB=0.9''
BD=3.5''
DE=1.35''
BC=0.9''
CF=3.5''
P 1 . In the linkage shown, analytically

Step by Step Solution

There are 3 Steps involved in it
