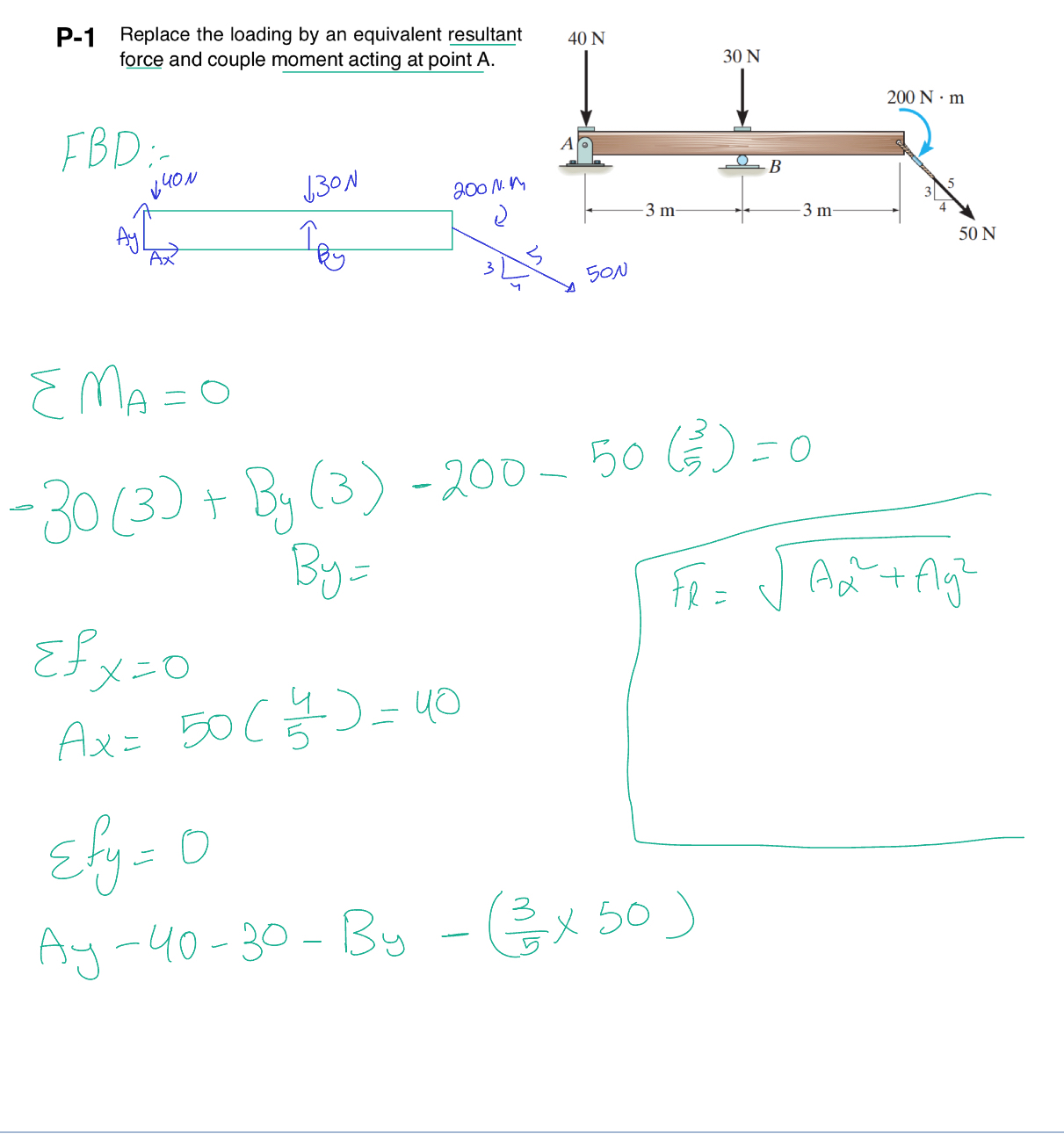

Question: P - 1 Replace the loading by an equivalent resultant force and couple moment acting at point A . FBD : ? ? M A

P-1 Replace the loading by an equivalent resultant
force and couple moment acting at point A.
FBD :
??MA=
-30(3)+By(3)-200-50(35)
fx=0
Ax=50(45)=40
fy=0
Ay-40-30-By-(3550)
Solve in similar steps and correT the wrongs
P - 1 Replace the loading by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
