Question: P = 2 3 F A B a ) Determine the maximum force P that can be applied to the handle so that

P=23FAB

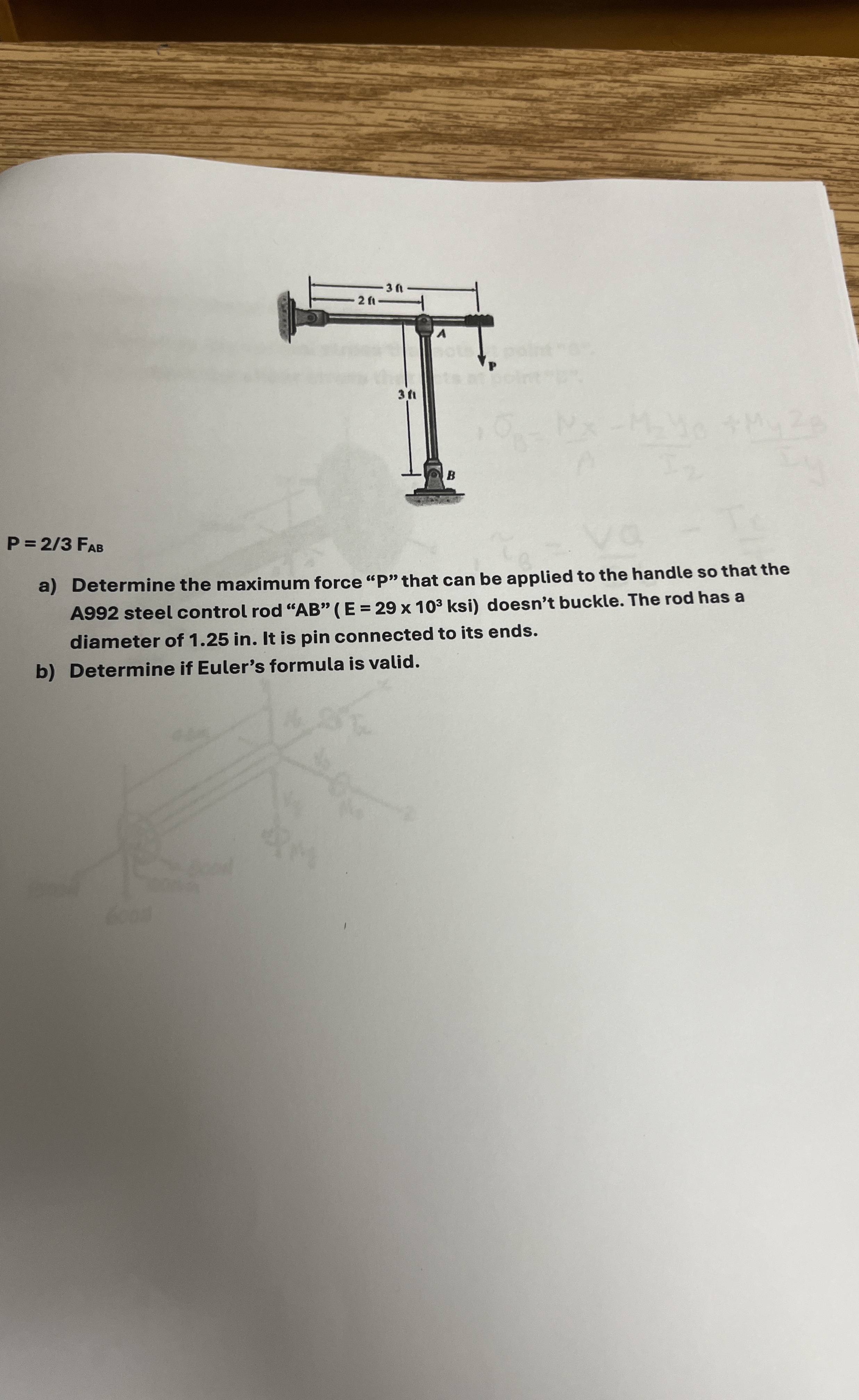

a) Determine the maximum force "P" that can be applied to the handle so that the A992 steel control rod "AB"(E=29103ksi ) doesn't buckle. The rod has a diameter of 1.25 in . It is pin connected to its ends.
b) Determine if Euler's formula is valid.
P = 2 3 F A B a ) Determine the maximum force " P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
