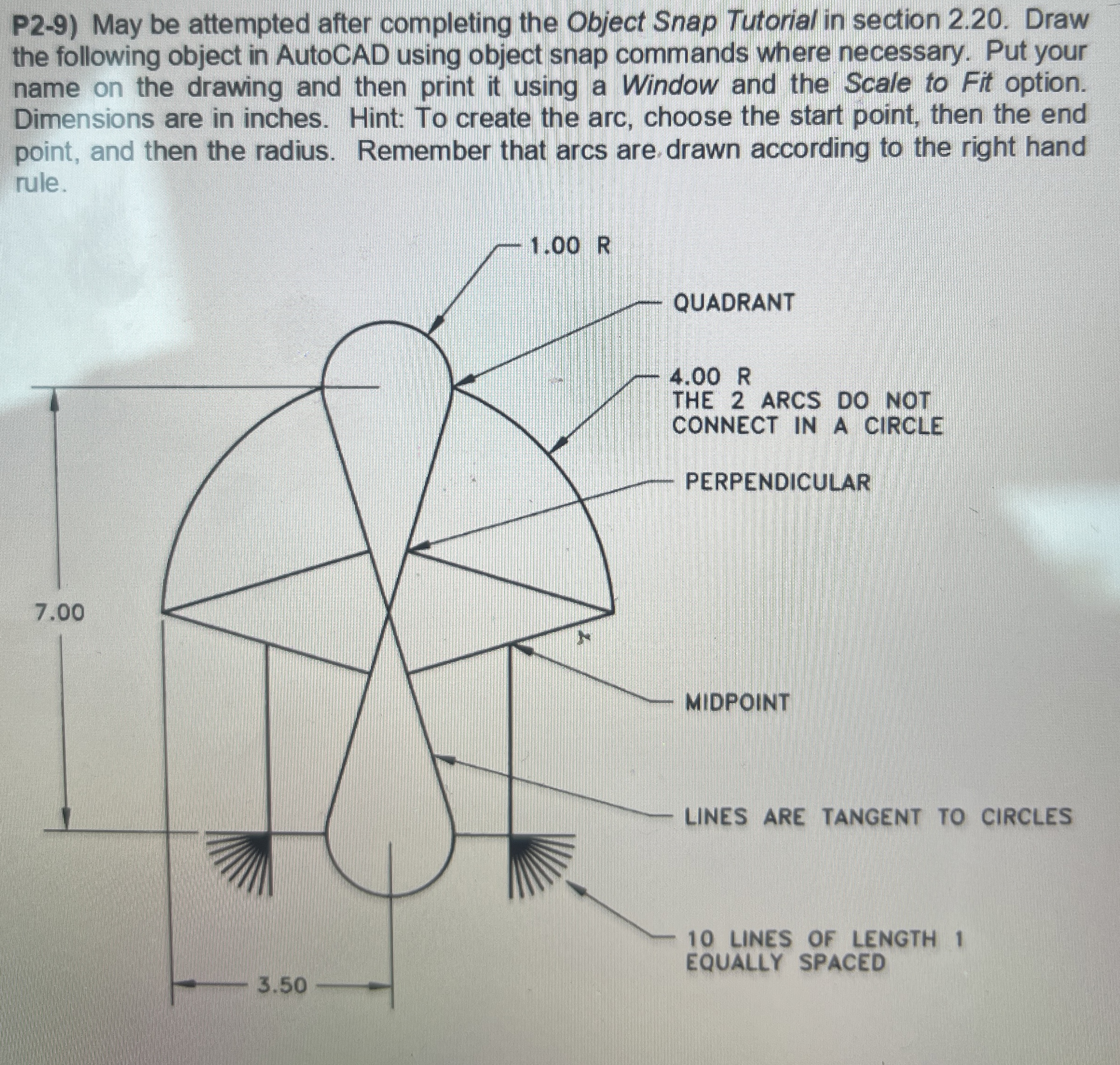

P$2-9)$ May be attempted after completing the Object Snap Tutorial in section $2\mathrm{.}20.$ Draw

the following object in AutoCAD using object snap commands where necessary. Put your

name on the drawing and then print it using a Window and the Scale to Fit option.

Dimensions are in inches. Hint: To create the arc, choose the start point, then the end

point, and then the radius. Remember that arcs are drawn according to the right hand

rule.
