P$3$

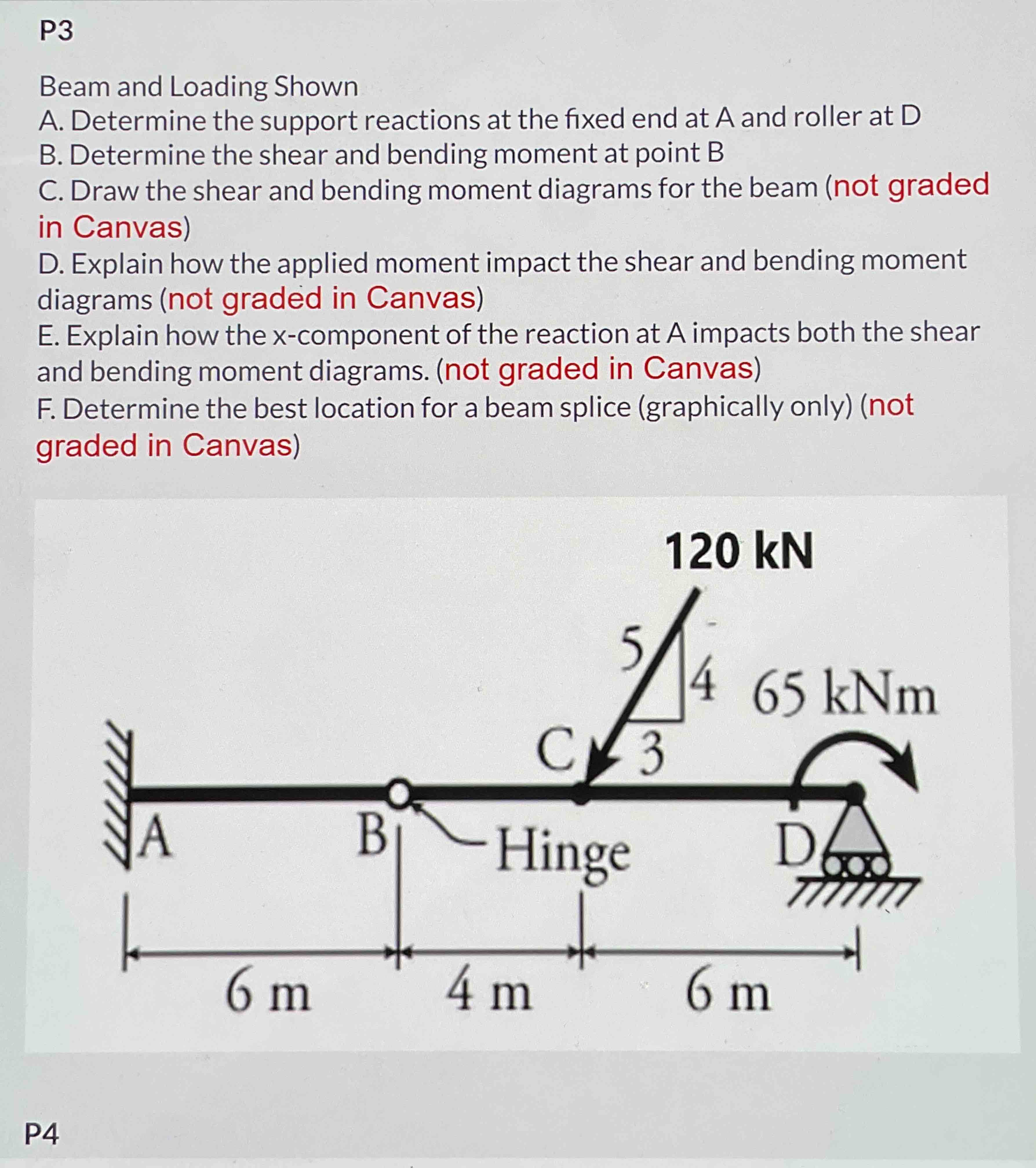

Beam and Loading Shown

A$.$ Determine the support reactions at the fixed end at $\backslash ($ A $\backslash )$ and roller at $\backslash ($ D $\backslash )$

B$.$ Determine the shear and bending moment at point $\backslash ($ B $\backslash )$

C$.$ Draw the shear and bending moment diagrams for the beam $($not graded in Canvas$)$

D$.$ Explain how the applied moment impact the shear and bending moment diagrams $($not graded in Canvas$)$

E$.$ Explain how the $\backslash ($ x $\backslash )-$component of the reaction at A impacts both the shear and bending moment diagrams. $($not graded in Canvas$)$

F$.$ Determine the best location for a beam splice $($graphically only$)($not graded in Canvas$)$
