Question: P 3 . In the linkage shown, analytically determine 3 , 4 8 , D C and position of point D respect the Absolut coordinates

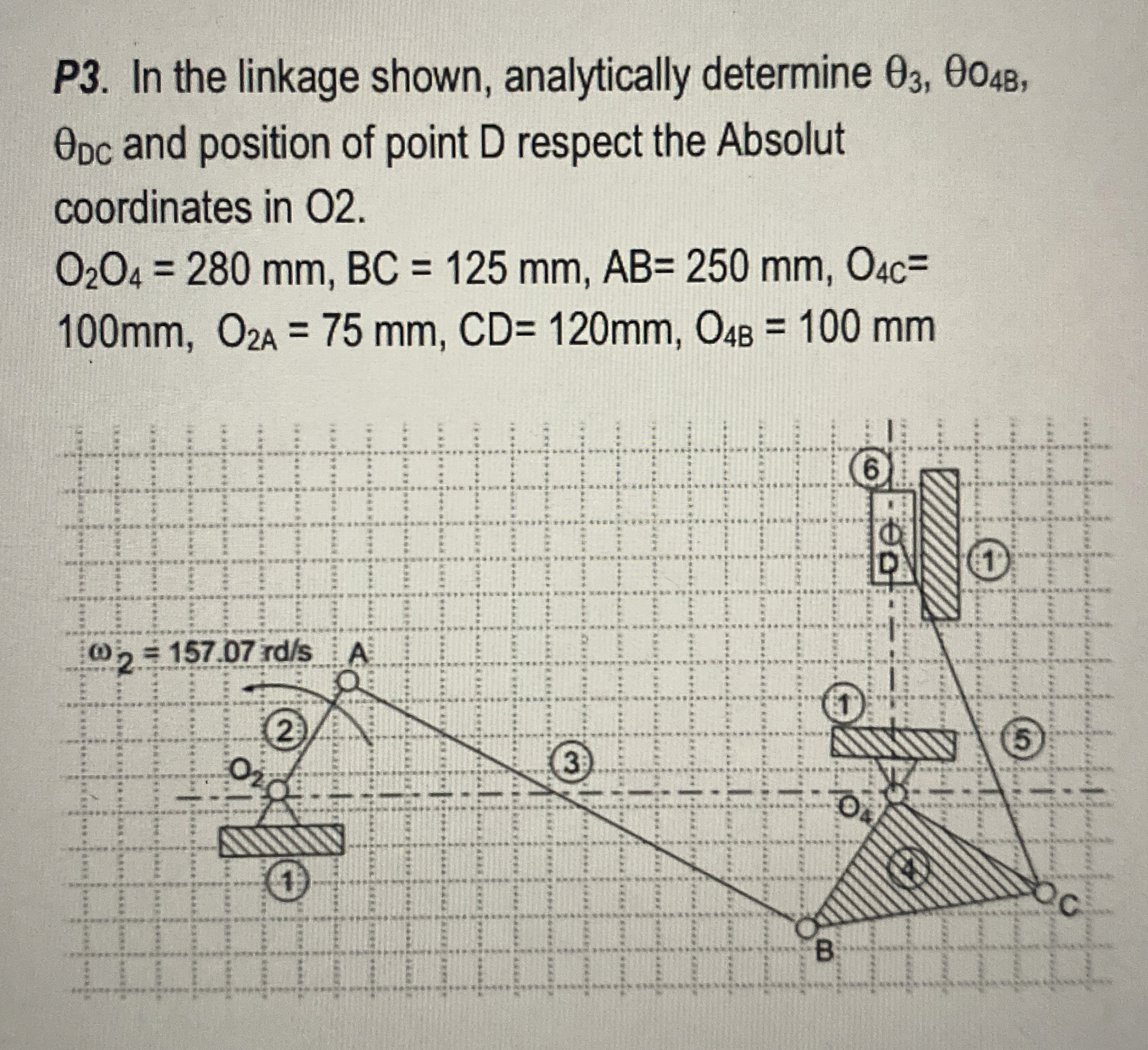

P3. In the linkage shown, analytically determine 3,48,DC and position of point D respect the Absolut coordinates in 02.
O2O4=280mm,BC=125mm,AB=250mm,O4=100mm,O2A=75mm,CD=120mm,O4B=100mm
P 3 . In the linkage shown, analytically

Step by Step Solution

There are 3 Steps involved in it
