Question: P 4 . 3 and P 4 . 4 . Determine the forces in all bars of the trusses. Indicate tension or compression. ( 3

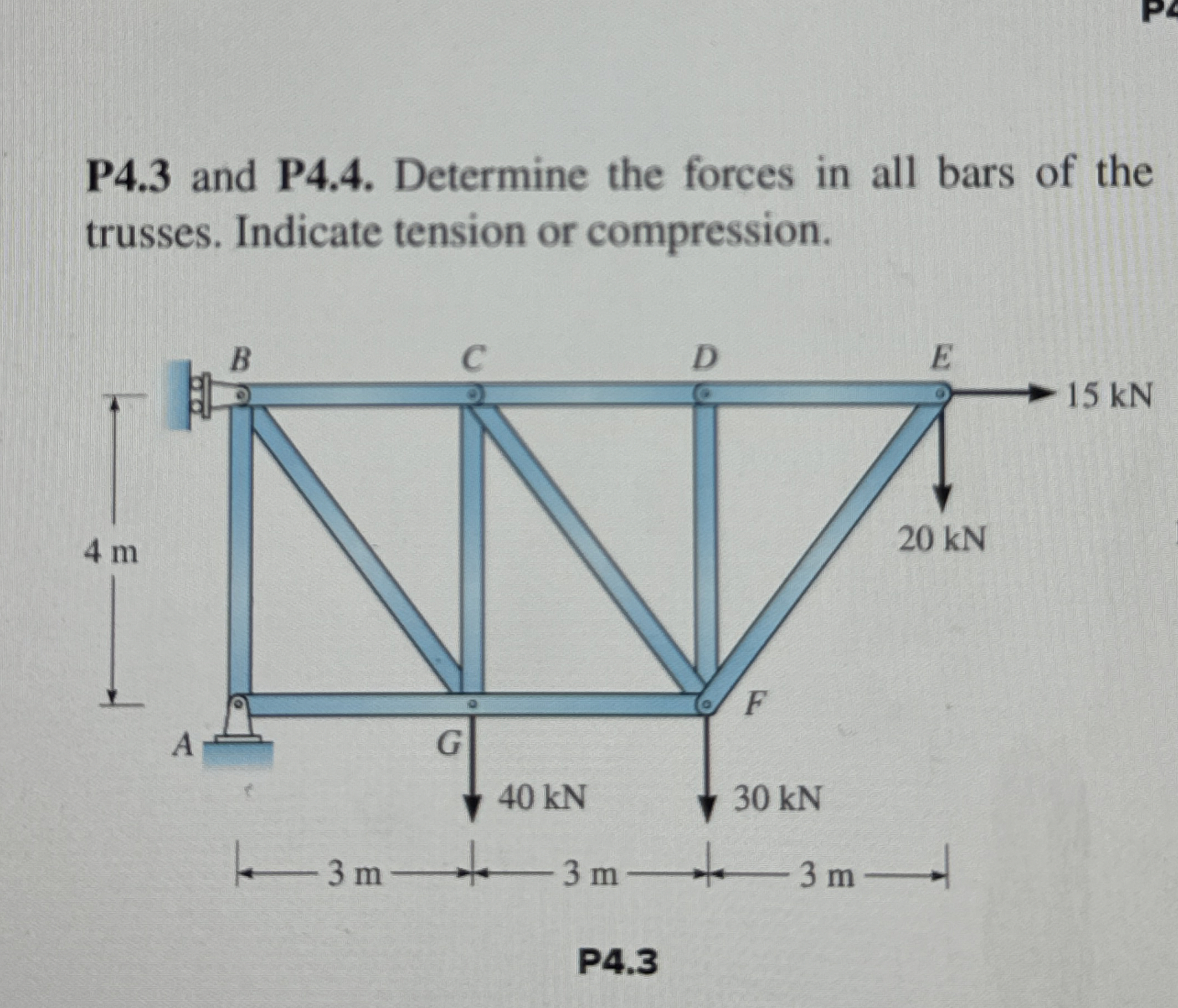

P4.3 and P4.4. Determine the forces in all bars of the trusses. Indicate tension or compression.
(3-4-5) Triangle.
P 4 . 3 and P 4 . 4 . Determine the forces in all

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the forces in all truss bars. Indicate tension or compression. 10 KN B H 6 kN G 4 @4m F D E 3 m 3 m

Q:

Determine the forces in all bars of the trusses in Figure P4.40. Indicate if bar forces are tension or compression. 3m 3 m B F 30 kN 3 m E 3 m T D T 2m

Q:

Determine the forces in all bars of the trusses in Figure P4.41. Indicate if bar forces are tension or compression. K B 30 kips H C 60 kips 4 @ 20 L G D 30 kips F E T 15' 15' 1

Q:

Determine the forces in all bars of the trusses in Figure P4.42. Indicate if bar forces are tension or compression. 24 kips E W 969 B 12' +4 12'

Q:

trusses. Indicate tension or compression. 4 m A Determine the forces in all bars of the B G C 40 kN D P4.3 F 30 kN 3 m3 m3 m E 20 kN 15 kN

Q:

Determine the forces in all bars of the trusses. Indicate tension or compression. A B C 100 KN 4m- D H E 4 m F RG T 4 m 4 m 4 m

Q:

Determine the forces in all bars of the trusses. Indicate tension or compression. 4m B 3 m G 40 kN 3m D F 30 kN 3 m E 20 KN 15 kN

Q:

Determine the forces in all bars of the trusses. Indicate tension or compression. 15' G F B 24 kips E 3 @ 10' = 30' D 24 kips

Q:

Determine the forces in all bars of the trusses. Indicate tension or compression. 10 kips B H 10 kips G 4 @ 8' 32' 10 kips D F 4 kips E 6'

Q:

Determine the forces in all bars of the trusses. Indicate tension or compression. 15 kips T 10' # 10' B 20 kips HG F 4 @ 10' 40' 10 kips D E
