Question: P 5 . 3 . Write the equations for shear and moment between points A and B . Select the origin at A . Plot

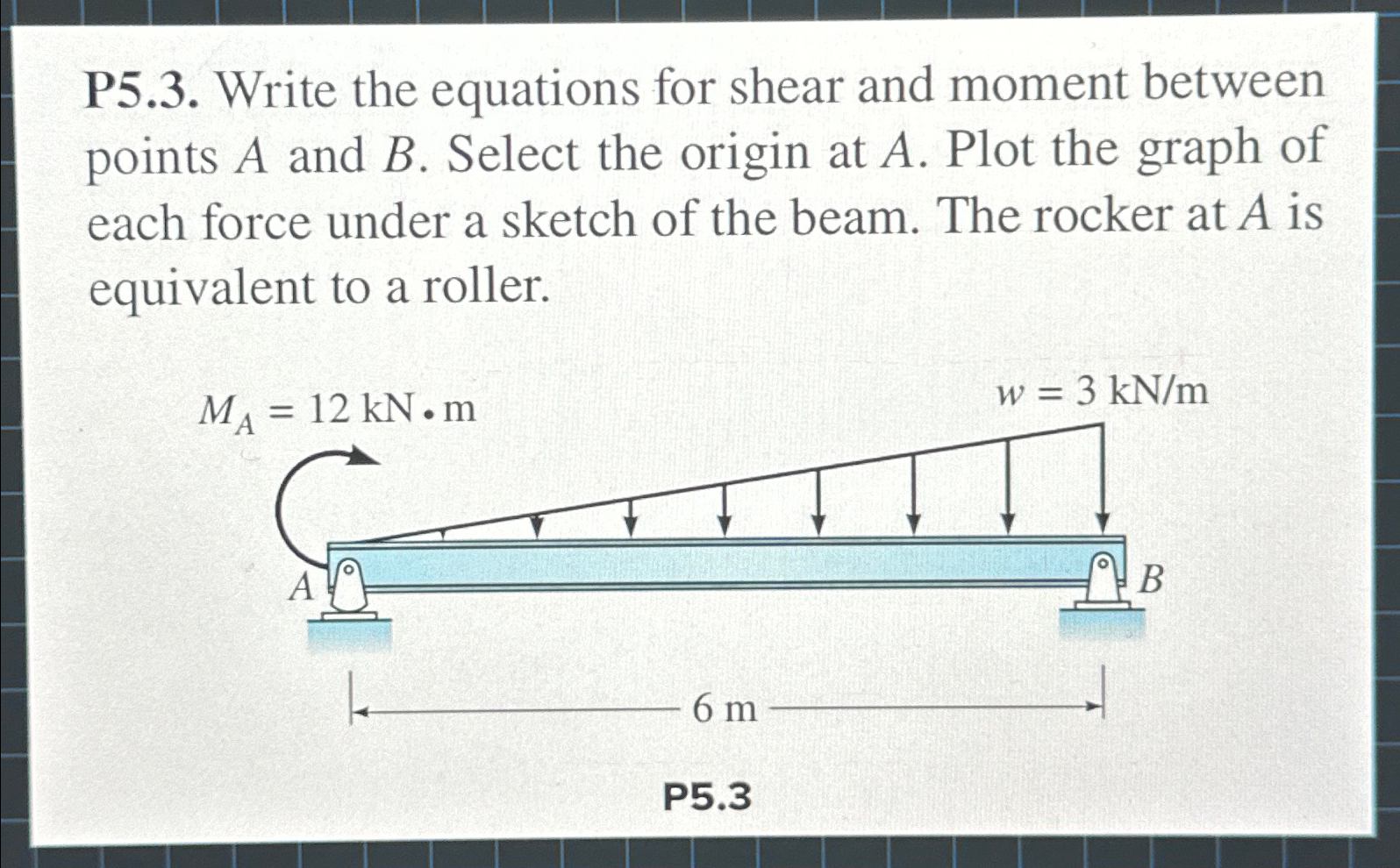

P5.3. Write the equations for shear and moment between points A and B. Select the origin at A. Plot the graph of each force under a sketch of the beam. The rocker at A is equivalent to a roller.
P5.3 Please also show graphs of sheer and bending moment diagrams
P 5 . 3 . Write the equations for shear and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
