Question: [ P 5 ] Draw the FBD for points A , B and C . Concept 4 - Equations for Method of joints [ P

[P5] Draw the FBD for points A, B and C.
Concept 4- Equations for Method of joints

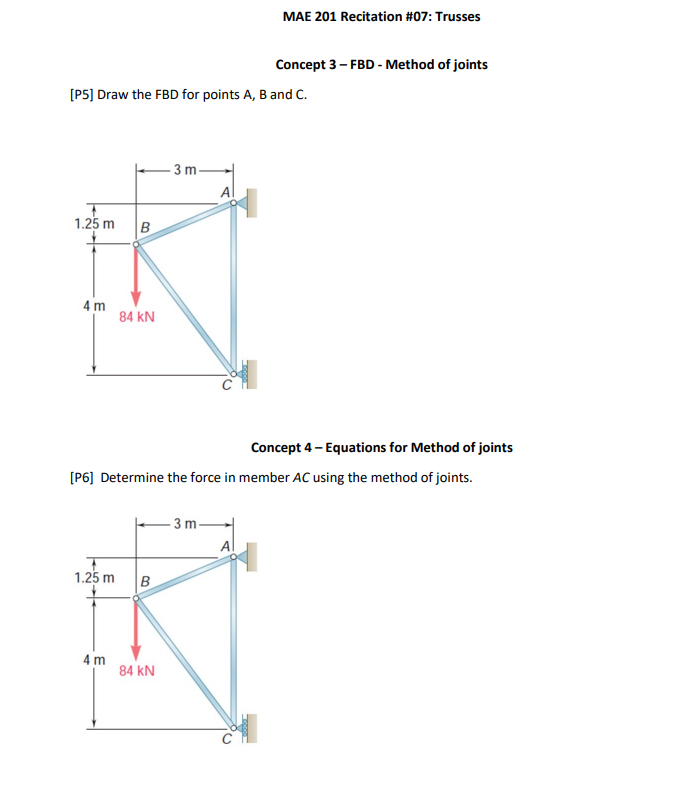

[P6] Determine the force in member \( A C \) using the method of joints.
[ P 5 ] Draw the FBD for points A , B and C .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
