Question: P 5 : The A - frame shown is pin - connected at A , B , C , and D . The surface at

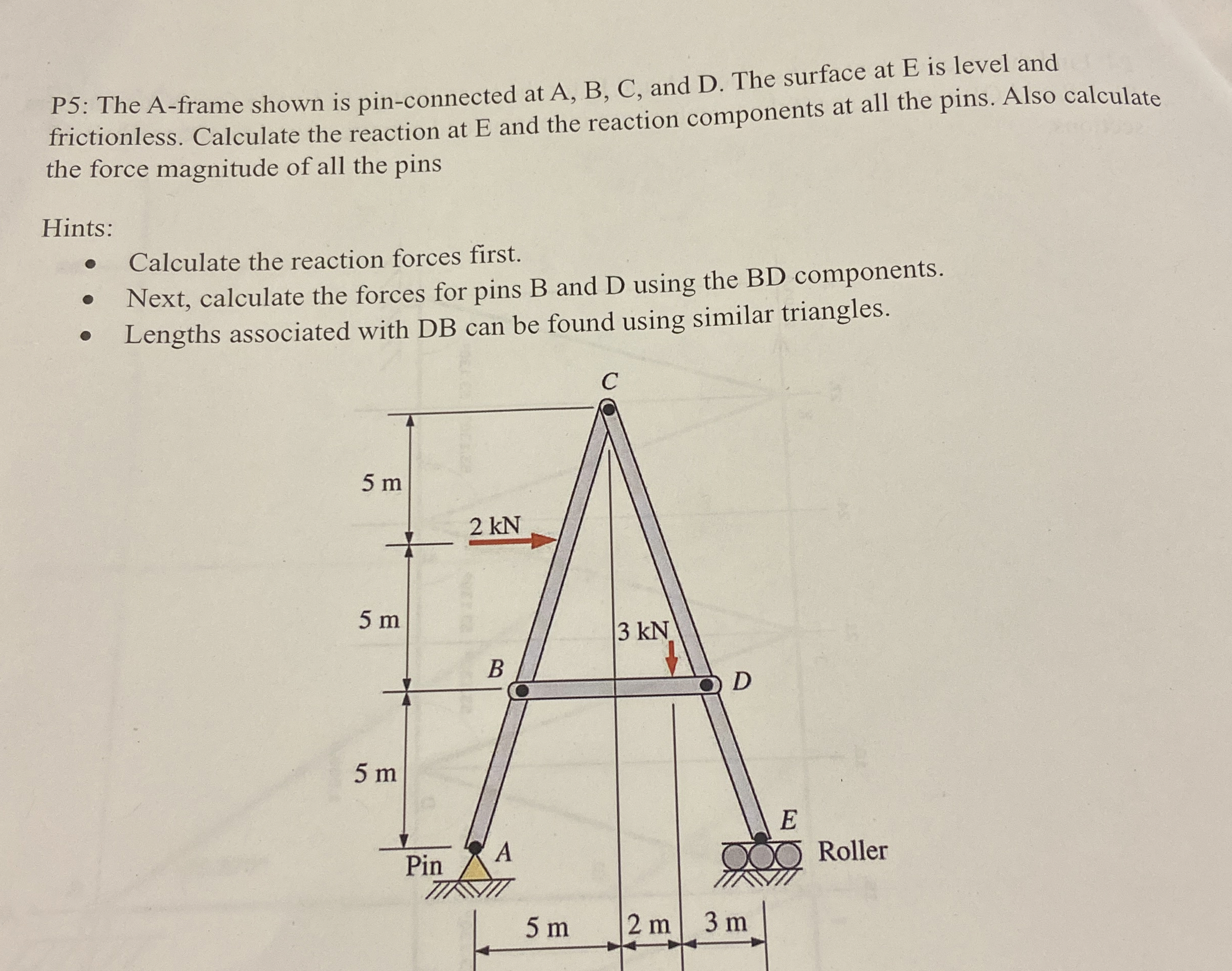

P5: The A-frame shown is pin-connected at A, B, C, and D. The surface at E is level and frictionless. Calculate the reaction at E and the reaction components at all the pins. Also calculate the force magnitude of all the pins
Hints:
Calculate the reaction forces first.
Next, calculate the forces for pins B and D using the BD components.
Lengths associated with DB can be found using similar triangles.
P 5 : The A - frame shown is pin - connected at A

Step by Step Solution

There are 3 Steps involved in it
