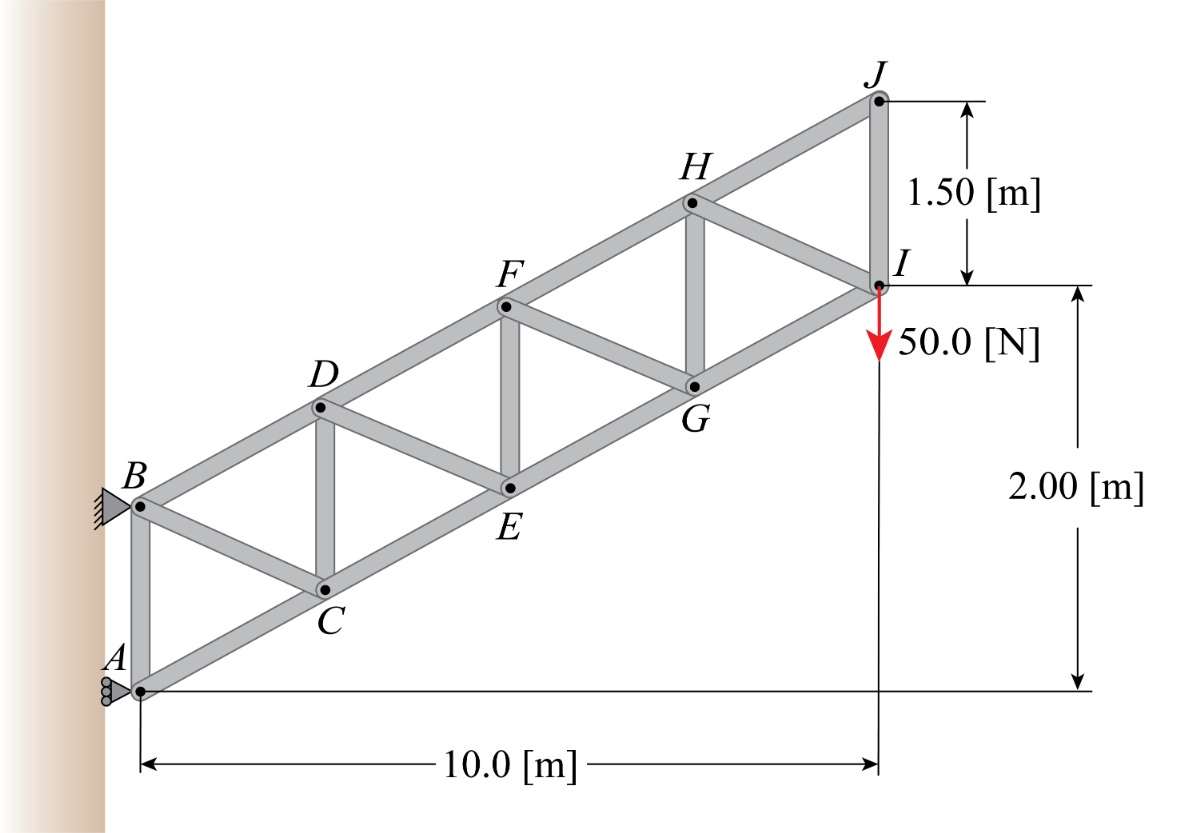

P$\mathrm{.}7\mathrm{.}6-$ Determine the forces within each member of the truss below utilizing the method of sections $($denote compressive forces as negative values and tensile forces as positive values$).$ Given the information in the figure above, determine the force within member BD$.$ Report your answer in units of $[$N$].$ Do not report units with your answer. The use of significant figures is not required. Please round your answer to the tenths place.

Type your numeric answer and submit

Cannot be empty

Hint

Make a vertical cut between truss members BD$,\backslash ($ B C $\backslash ),$ and $\backslash ($ A C $\backslash ).$ Then use the method of sections to find the force in truss member $\backslash ($ B D $\backslash ).$ This can be done utilizing your three equilibrium equations $($i$.$e$.$ summation of forces in the $\backslash ($ x $\backslash )-$ and $\backslash ($ y $\backslash )-$direction, and a summation of moments$).$

Answered $-$ Incorrect $-2$ attempts left Given the information in the figure above, determine the force within member CD$.$ Report your answer in units of $[$N$].$ Do not report units with your answer. The use of significant figures is not required. Please round your answer to the tenths place.

Type your numeric answer and submit

Hint

Make a cut between truss members BD$,$ CD$,$ and CE$.$ Then use the method of sections to find the force in truss member CD$.$ This can be done utilizing your three equilibrium equations $($i$.$e$.$ summation of forces in the $\backslash ($ x $\backslash )-$ and $\backslash ($ y $\backslash )-$direction, and a summation of moments$).$

Hint

Make a vertical cut between truss members DF$,$ DE$,$ and CE$.$ Then use the method of sections to find the force in truss member DE$.$ This can be done utilizing your three equilibrium equations $($i$.$e$.$ summation of forces in the $\backslash ($ x $\backslash )-$ and $\backslash ($ y $\backslash )-$direction, and a summation of moments$).$

Hint

Make a cut between truss members DF$,$ EG$,$ and EF$.$ Then use the method of sections to find the force in truss member EF$.$ This can be done utilizing your three equilibrium equations $($i$.$e$.$ summation of forces in the $\backslash ($ x $\backslash )-$ and $\backslash ($ y $\backslash )-$direction, and a summation of moments$).$
