$P=\frac{H}{2\mathrm{.}31}$

PRESSURE

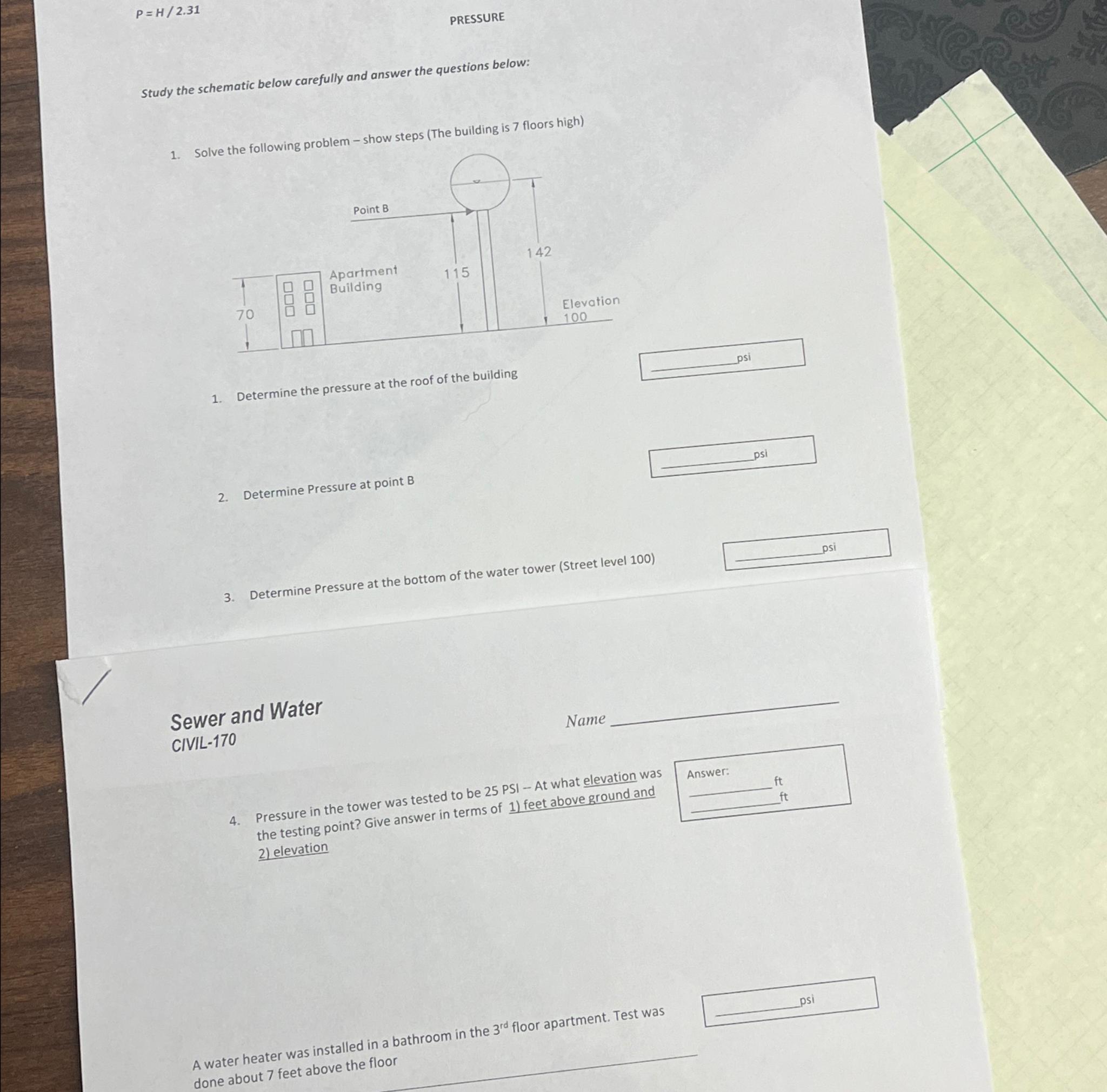

Study the schematic below carefully and answer the questions below:

Solve $t..........$ now nroblem $-$ show steps $($The building is $7$ floors high$)$

Determine the pressure at the roof of the building

Determine Pressure at point $B$

Determine Pressure at the bottom of the water tower $($Street level $100)$

Name

CIVIL$-170$

Pressure in the tower was tested to be $25$ PSI $-$ At what elevation was the testing point? Give answer in terms of $1)$ feet above ground and $2)$ elevation

A water heater was installed in a bathroom in the $3^{rd}$ floor apartment. Test was done about $7$ feet above the floor
