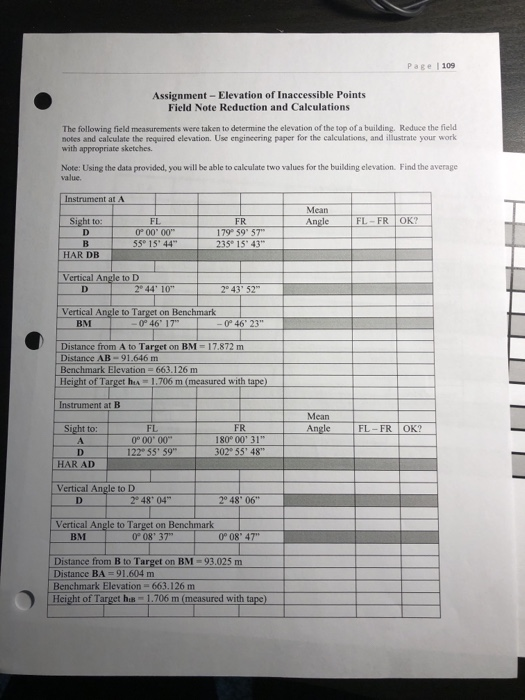

Pa 109 Assignment - Elevation of Inaccessible Points Field Note Reduction and Calculations The following field measurements were taken to determine the elevation of the top of a building. Reduce the field notes and calculate the required elevation. Use engineering paper for the calculations, and illustrate your work with appropriate sketches Note: Using the data provided, you will be able to calculate two values for the building elevation. Find the average value Instrument at A Mean Angle FL - FR OK? Sight to D O FL 00'00" 35 15' 44 FR 179 59' 57" 235 15' 43" HAR DB Vertical Angle to D 2 44' 10" 2 43' 52" Vertical Angle to Target on Benchmark BM 046' 17" - 0 46' 23" Distance from A to Target on BM-17.872 m Distance AB - 91.646 m Benchmark Elevation=663.126 m Height of Targeth 1.706 m (measured with tape) Instrument at B A Mean ngle FL - FR OK? Sight to: A D HAR AD FL 0 00'00" 122 55' 59" F R 18000' 31" 302 55' 48" Vertical Angle to D 2 48' 04" 2 48' 06" Vertical Angle to Target on Benchmark BMP 0 08' 37" 0 08' 47" Distance from B to Target on BM-93.025 m Distance BA=91.604 m Benchmark Elevation - 663.126 m Height of Target hus - 1.706 m (measured with tape) Pa 109 Assignment - Elevation of Inaccessible Points Field Note Reduction and Calculations The following field measurements were taken to determine the elevation of the top of a building. Reduce the field notes and calculate the required elevation. Use engineering paper for the calculations, and illustrate your work with appropriate sketches Note: Using the data provided, you will be able to calculate two values for the building elevation. Find the average value Instrument at A Mean Angle FL - FR OK? Sight to D O FL 00'00" 35 15' 44 FR 179 59' 57" 235 15' 43" HAR DB Vertical Angle to D 2 44' 10" 2 43' 52" Vertical Angle to Target on Benchmark BM 046' 17" - 0 46' 23" Distance from A to Target on BM-17.872 m Distance AB - 91.646 m Benchmark Elevation=663.126 m Height of Targeth 1.706 m (measured with tape) Instrument at B A Mean ngle FL - FR OK? Sight to: A D HAR AD FL 0 00'00" 122 55' 59" F R 18000' 31" 302 55' 48" Vertical Angle to D 2 48' 04" 2 48' 06" Vertical Angle to Target on Benchmark BMP 0 08' 37" 0 08' 47" Distance from B to Target on BM-93.025 m Distance BA=91.604 m Benchmark Elevation - 663.126 m Height of Target hus - 1.706 m (measured with tape)
