Question: Page 6 a . Determine the current through R 4 for the circuit in the Figure 3 . 1 if 5 0 V . (

Page 6
a. Determine the current through R4 for the circuit in the Figure 3.1 if 50 V .
(5 ma
b. Determine the Thevenin equivalent as seen from terminals A and B

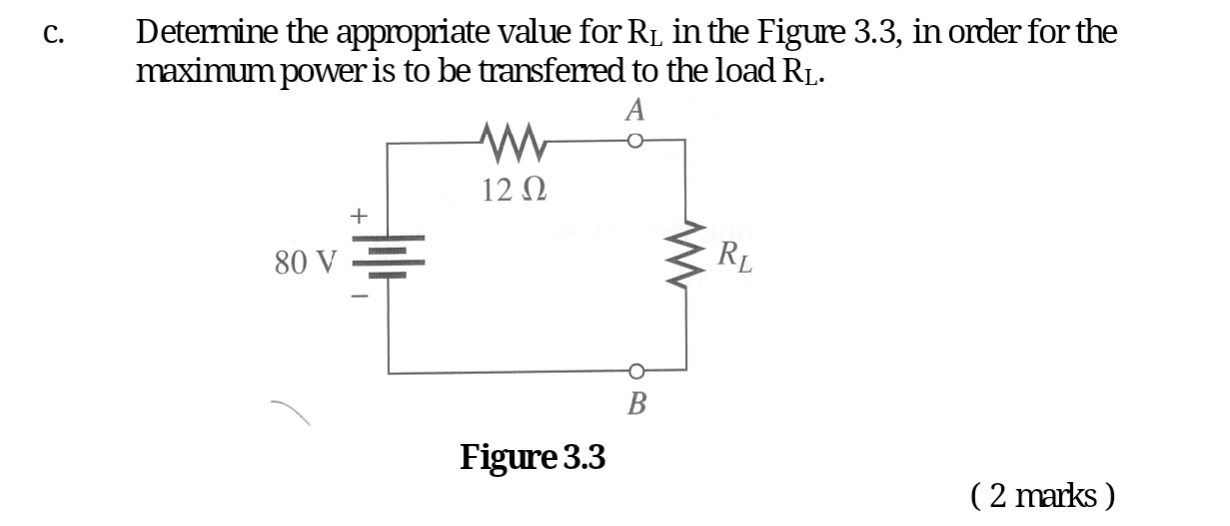

c. Determine the appropriate value for RL in the Figure 3.3, in order for the maximum power is to be transferred to the load RL.
Figure 3.3
(2 marks )
Page 6 a . Determine the current through R 4 for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
