Question: Part 1: Practice Exercises on CPM model 1. Construct AON and AOA diagram 2. Identify the paths and the time for each path 3. Conduct

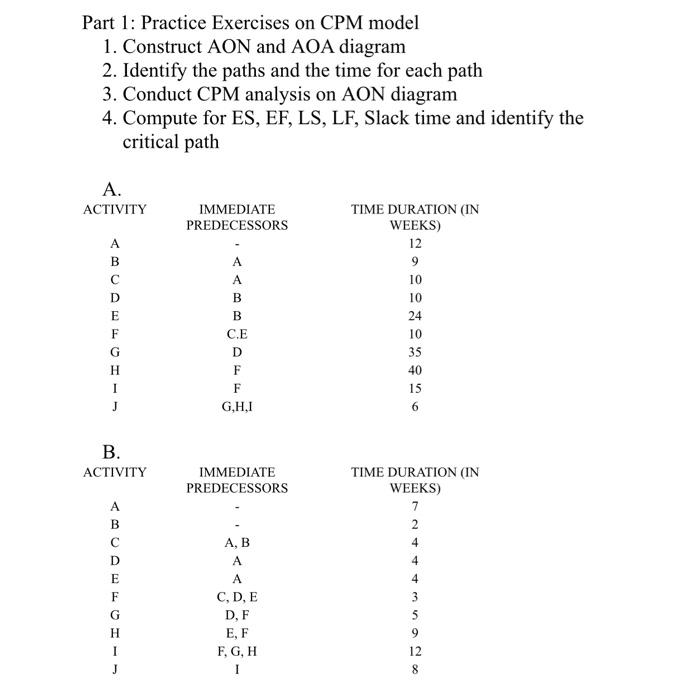

Part 1: Practice Exercises on CPM model 1. Construct AON and AOA diagram 2. Identify the paths and the time for each path 3. Conduct CPM analysis on AON diagram 4. Compute for ES, EF, LS, LF, Slack time and identify the critical path A. ACTIVITY IMMEDIATE PREDECESSORS A B D E F G H 1 J A A B B C.E D F F G,H,1 TIME DURATION (IN WEEKS) 12 9 10 10 24 10 35 40 15 6 B. ACTIVITY IMMEDIATE PREDECESSORS TIME DURATION (IN WEEKS) 7 2 4 AB A A B D E F G H 1 J A C, D, E DF E, F F, G, H I 4 4 3 5 9 12 8
