Question: PART ( 2 0 PTS ) WRITE THE EQUATION FOR THE VERTICAL DEFLECTION AS A FUNCTION OF x . FIND THE REACTION FORCES & MOMENT.

PART (20 PTS)

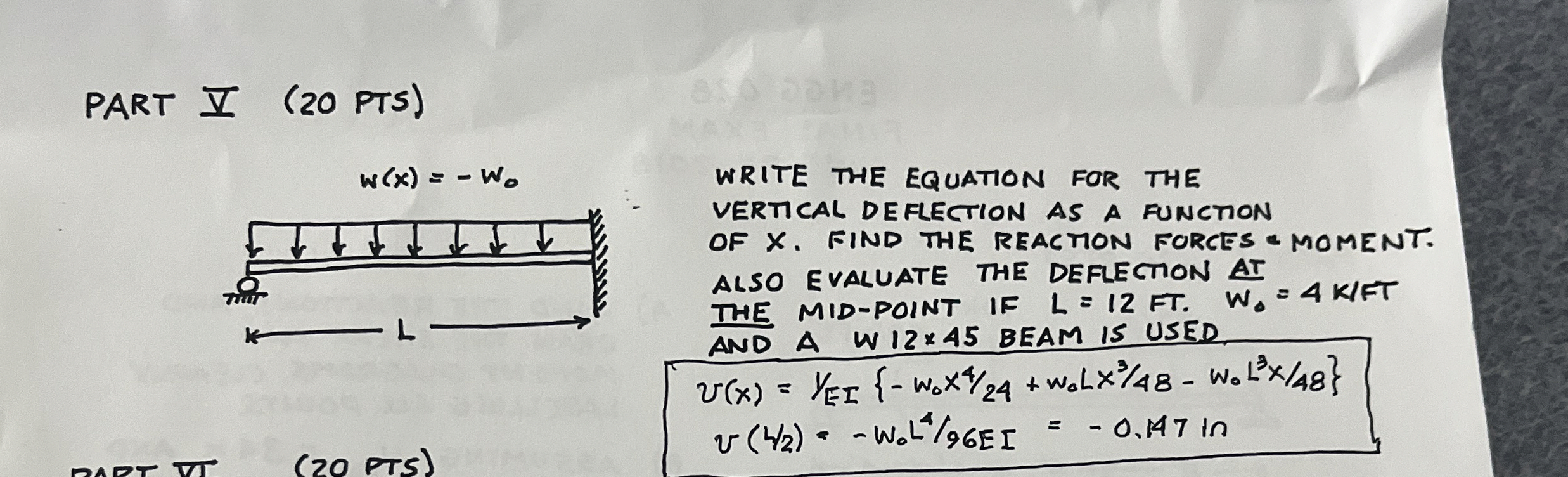

WRITE THE EQUATION FOR THE VERTICAL DEFLECTION AS A FUNCTION OF x. FIND THE REACTION FORCES & MOMENT. alSO EVALUATE THE DEFLECTION AT THE MID-POINT IF L=12FT.W0=4KIFT AND A W 1245 BEAM IS USED.
v(x)=yEI{-w0x424+w0Lx348-w0L3x48}
v(L2)=-w0L496EI=-0.147in
PART ( 2 0 PTS ) WRITE THE EQUATION FOR THE

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
