Question: Part 2 - Design of Boolean Logics Gray code ( GC ) is a binary code that ensures that from one transition to another, there

Part 2- Design of Boolean Logics

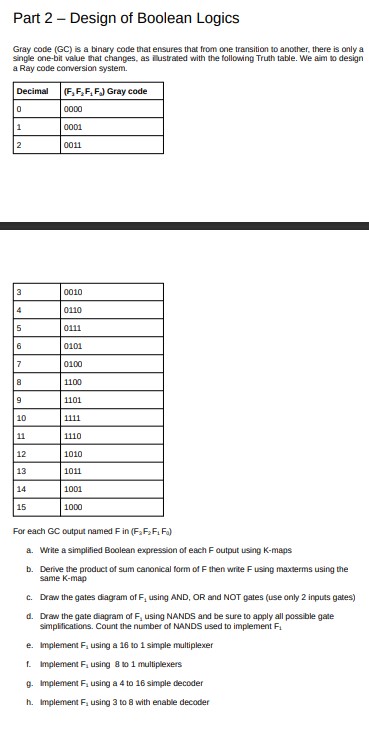

Gray code (GC) is a binary code that ensures that from one transition to another, there is only a
single one-bit value that changes, as ilustrated with the following Truth table. We aim to design
a Ray code corversion system.
For each GC output named F in (F2F2F1F2)
b. Derive the product of sum canonical form of F then write F using maxterms using the same K-map Please write this on paper and show me f0,f1,f2,f3 and answer cardinal correctly please.
Part 2- Design of Boolean Logics Gray code (GC) is a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
