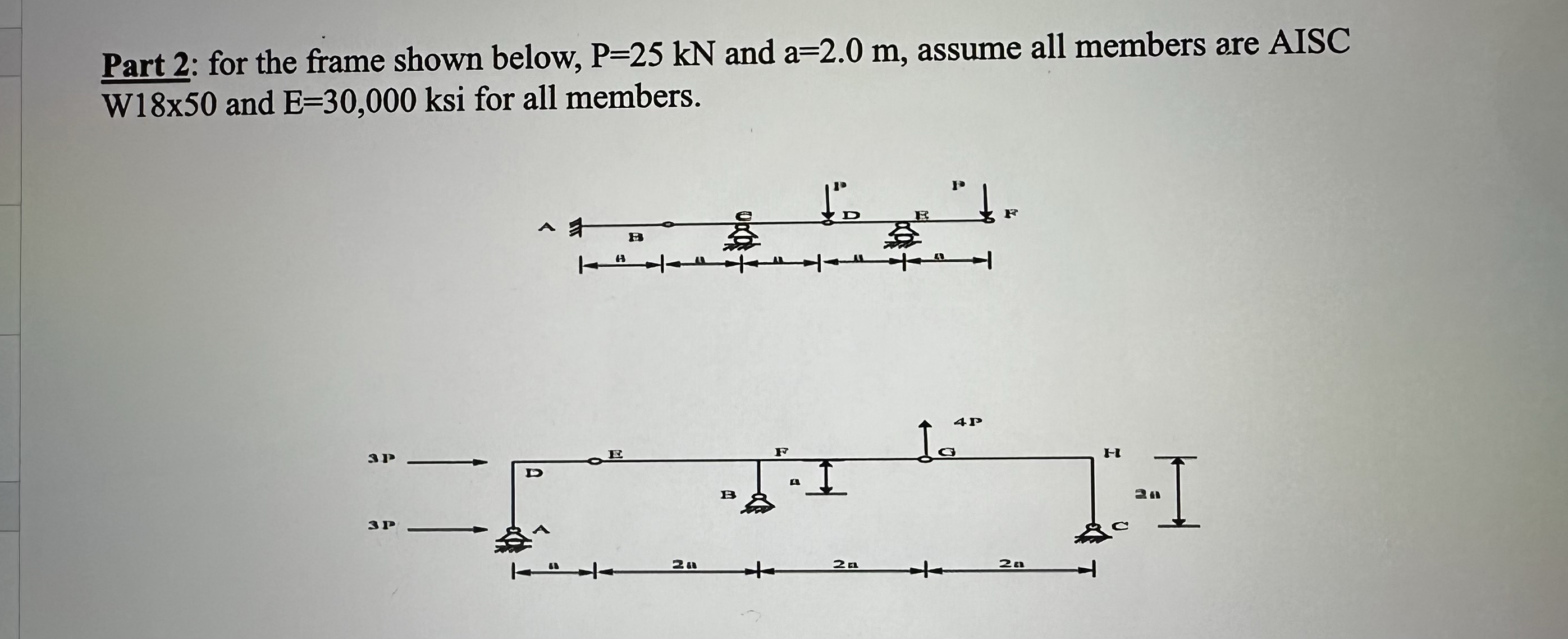

Question: Part 2 : for the frame shown below, P = 2 5 k N and a = 2 . 0 m , assume all members

Part 2: for the frame shown below, P=25kN and a=2.0m, assume all members are AISC
W1850 and E=30,000ksi for all members. Ignore the top beam. Solve the frame by hand for axial forces and moment of each member.
Part 2 : for the frame shown below, P = 2 5 k N

Step by Step Solution

There are 3 Steps involved in it
