Question: Part A Consider the system shown in ( Figure 1 ) . Determine the moment of the force F about the door hinge at B

Part A
Consider the system shown in (Figure 1).
Determine the moment of the force F about the door hinge at B. Express the result as components of a Cartesian
vector.
Enter the x,y, and z components of the moment in pound-feet to three significant figures and separated by
commas.
lb*ft
X Incorrect; Try Again; 5 attempts remaining

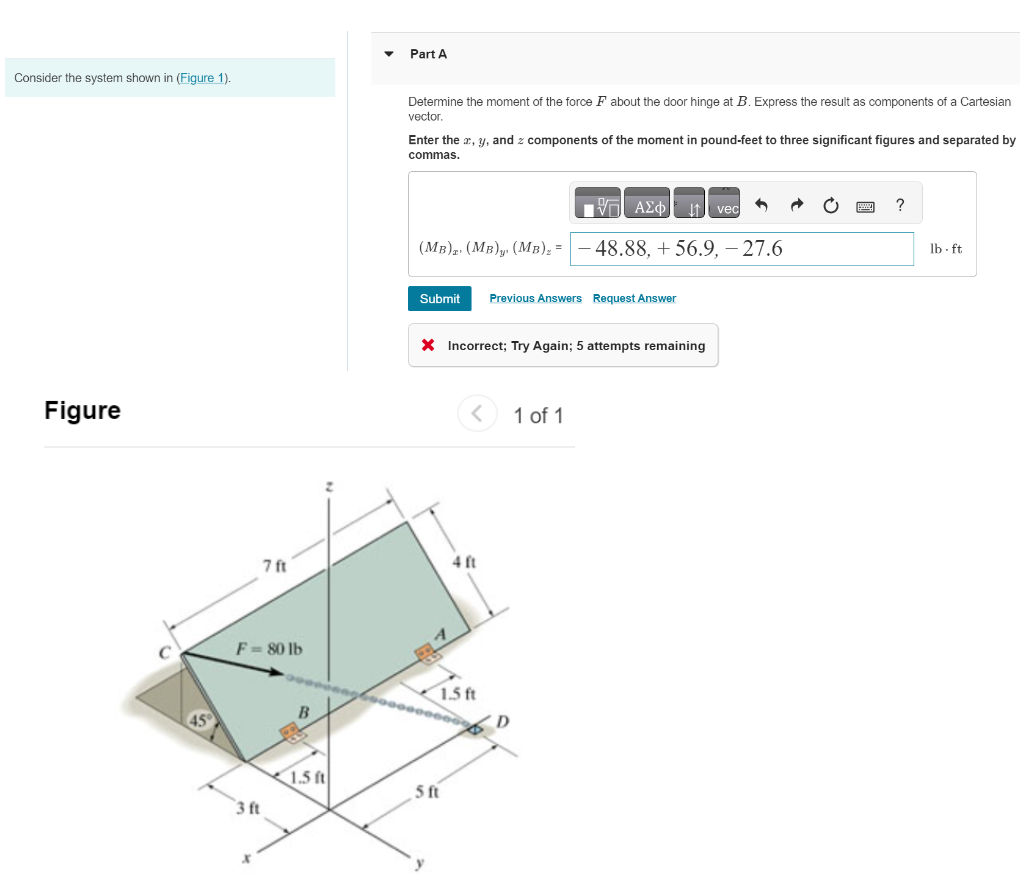

Figure
Part A Consider the system shown in ( Figure 1 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
