Question: Part A Determine the angles ( theta ) for equilibrium of the 8 - lb disk using the principle of the virtual

Part A

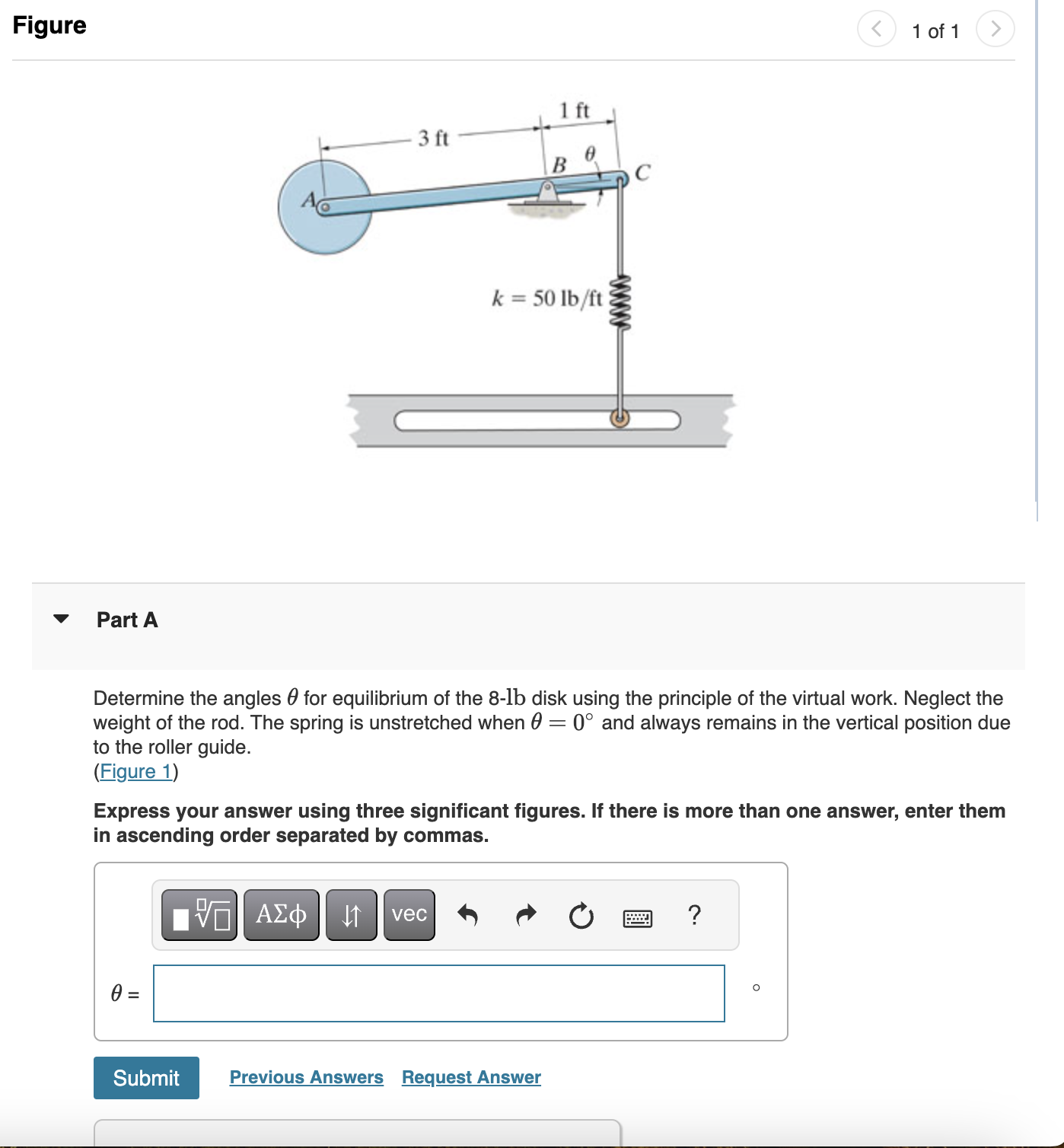

Determine the angles \(\theta \) for equilibrium of the 8-lb disk using the principle of the virtual work. Neglect the weight of the rod. The spring is unstretched when \(\theta=0^{\circ}\) and always remains in the vertical position due to the roller guide.
(Figure 1)
Express your answer using three significant figures. If there is more than one answer, enter them in ascending order separated by commas.
