Question: Part a ) For the built - up beam shown below, calculate the moment of inertia about the x - axis. ( Figure 7 )

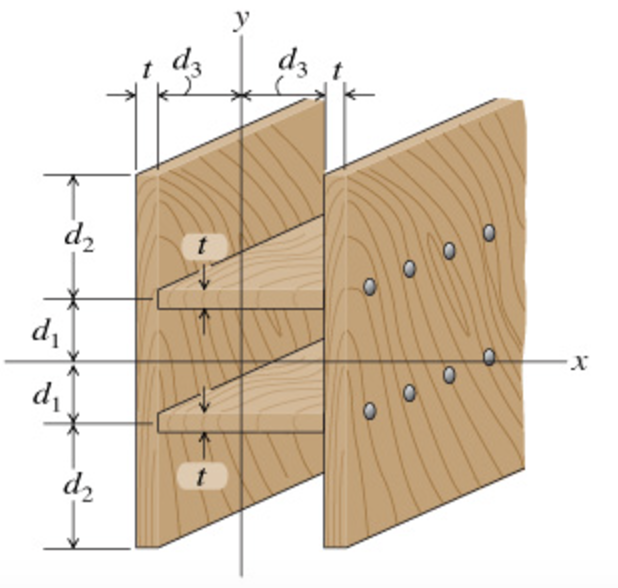

Part a) For the built-up beam shown below, calculate the moment of inertia about the x-axis. (Figure 7) The dimensions are d1=5.5in, d2=13.5in, d3=7.0in, and t=0.60in. Part b) For the beam from Part A (shown again here for reference), calculate the moment of inertia about the y-axis. (Figure 7) The dimensions are d1=5.5in, d2=13.5in, d3=7.0in, and t=0.60in. Express your answer to three significant figures and include the appropriate units.
Part a ) For the built - up beam shown below,
