Question: Part A If the large ring, small ring and each of the spokes weigh ( 1 7 1 mathrm { lb } ,

Part A

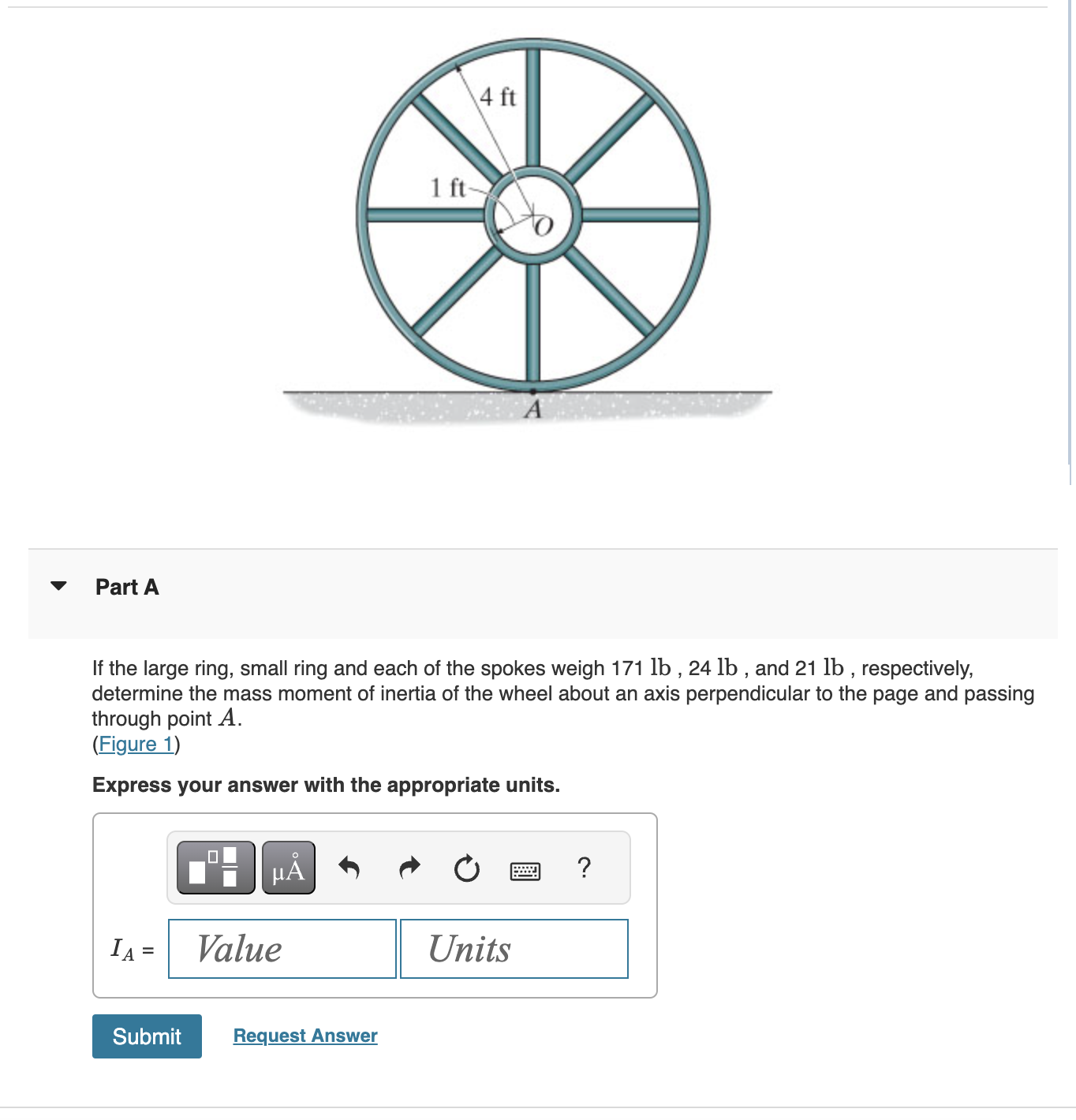

If the large ring, small ring and each of the spokes weigh \(171\mathrm{lb},24\mathrm{lb}\), and 21 lb , respectively, determine the mass moment of inertia of the wheel about an axis perpendicular to the page and passing through point \( A \).
(Figure 1)
Express your answer with the appropriate units.
\[
I_{A}=
\]
Part A If the large ring, small ring and each of
