Question: Part A Pipe ( A B ) has a diameter of 4 0 mm . Water flows through it at a rate of

Part A

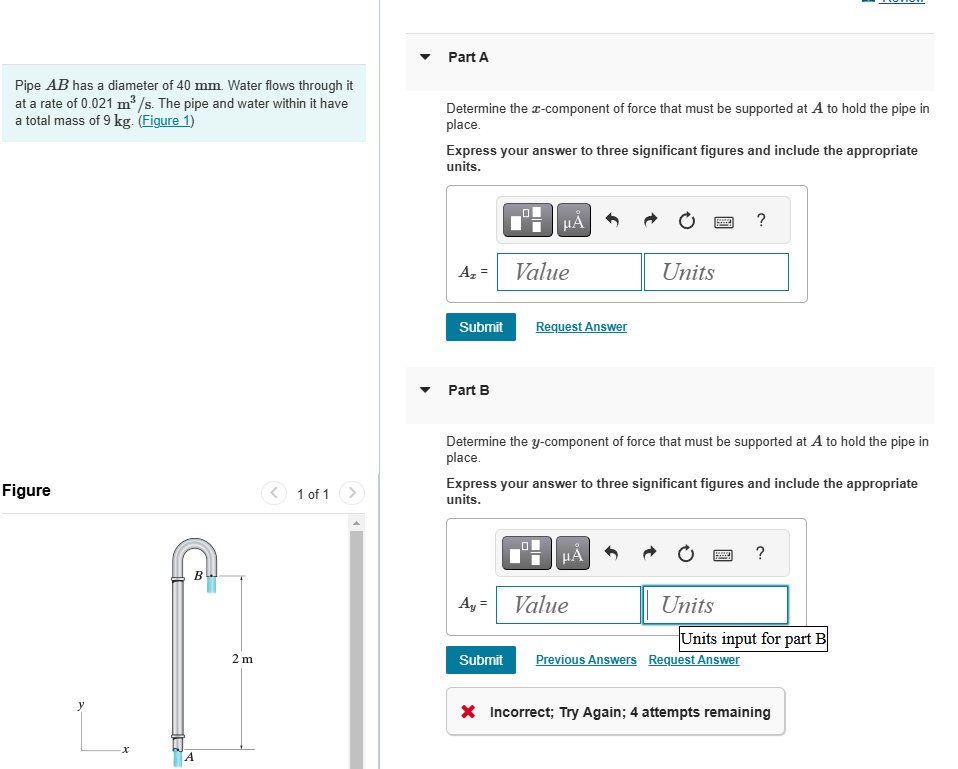

Pipe \( A B \) has a diameter of 40 mm . Water flows through it at a rate of \(0.021\mathrm{~m}^{3}/\mathrm{s}\). The pipe and water within it have a total mass of 9 kg .(Figure 1)
Figure
Determine the \( y \)-component of force that must be supported at \(\boldsymbol{A}\) to hold the pipe in place.
Express your answer to three significant figures and include the appropriate units.
Request Answer
Part B
Previous Answers Request Answer
Determine the \(\boldsymbol{x}\)-component of force that must be supported at \(\boldsymbol{A}\) to hold the pipe in place.
Express your answer to three significant figures and include the appropriate units.
\[
A_{x}=\square
\]
Part A Pipe \ ( A B \ ) has a diameter of 4 0 mm

Step by Step Solution

There are 3 Steps involved in it
