Question: Part A Replace the force system acting on the frame by an equivalent resultant force and couple moment acting at point A . Suppose that

Part A

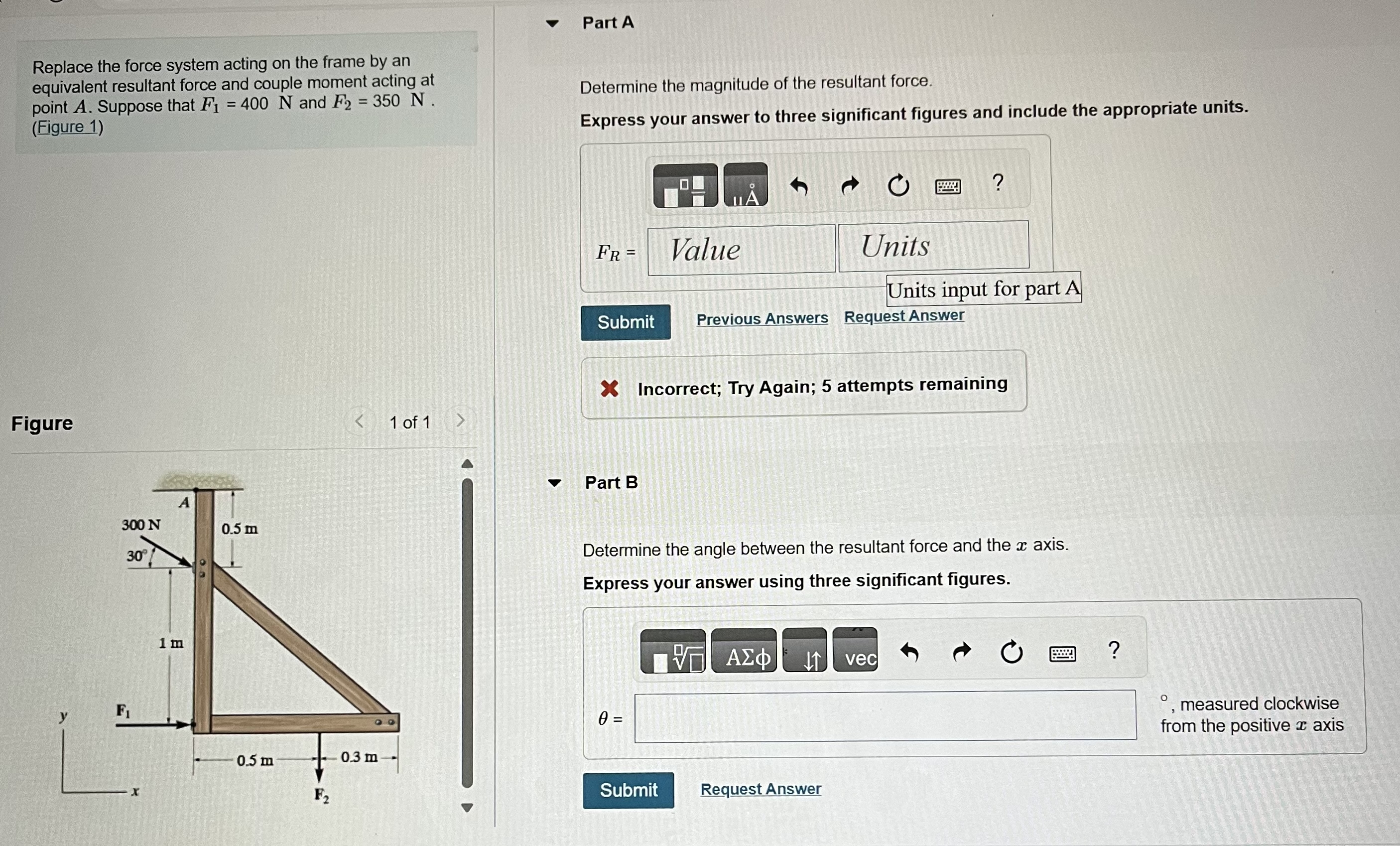

Replace the force system acting on the frame by an equivalent resultant force and couple moment acting at point A. Suppose that F1=400N and F2=350N.(Figure 1)
Figure
1 of 1
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
FR= Value Units
Units input for part A
Previous Answers
Request Answer
X Incorrect; Try Again; 5 attempts remaining
Part B
Determine the angle between the resultant force and the x axis.
Express your answer using three significant figures.
-, measured clockwise from the positive x axis
Request Answer
