Question: Part A Take P = 2 0 0 l b . ( Figure 1 ) Determine the horizontal and vertical components of force acting at

Part A

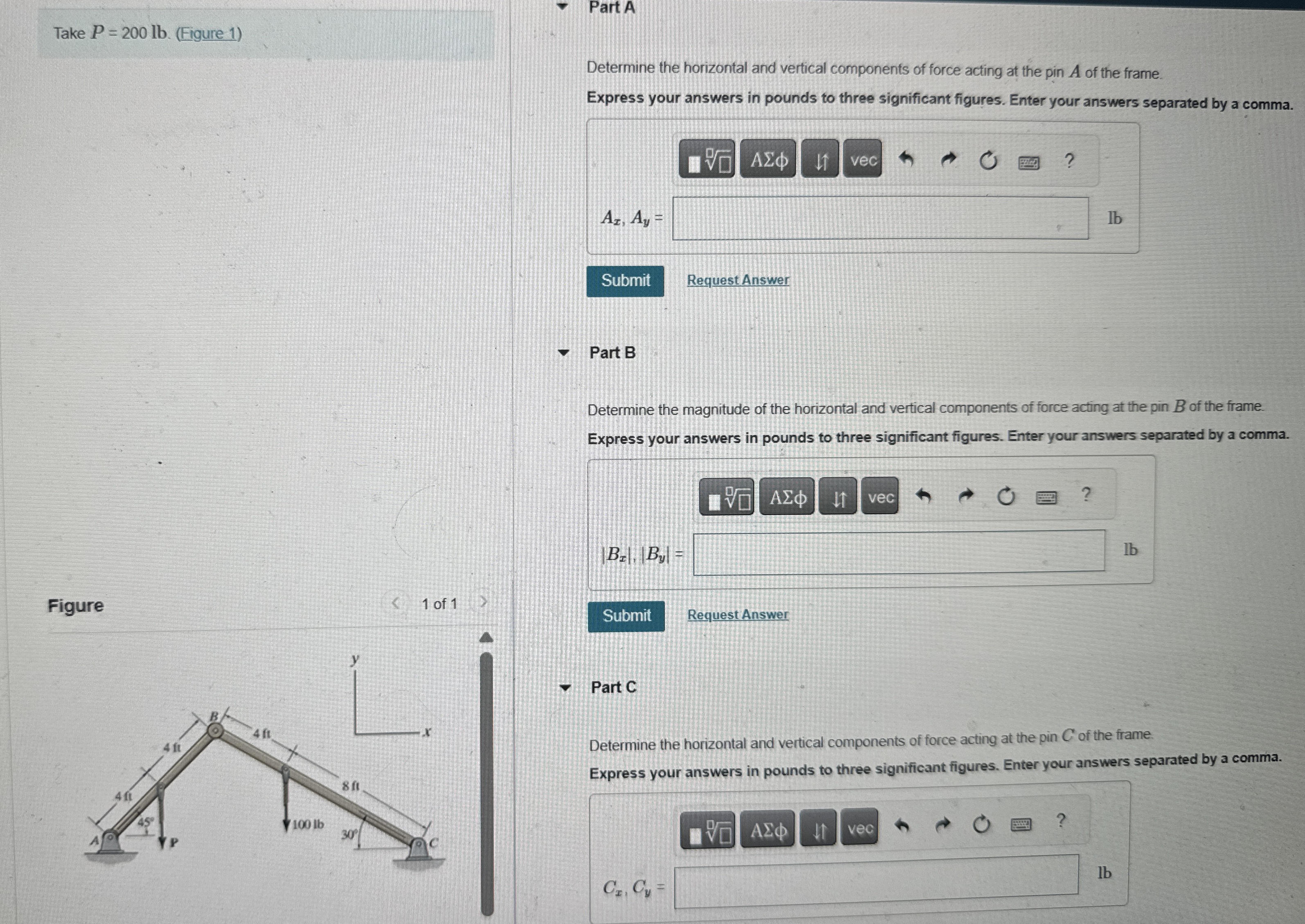

Take P=200lb.(Figure 1)
Determine the horizontal and vertical components of force acting at the pin A of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
Ax,Ay=
lb
Request Answer
Part B
Determine the magnitude of the horizontal and vertical components of force acting at the pin B of the frame. Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
|Bx|,|By|=
Request Answer
Part C
Determine the horizontal and vertical components of force acting at the pin C of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
Part A Take P = 2 0 0 l b . ( Figure 1 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
