Part A

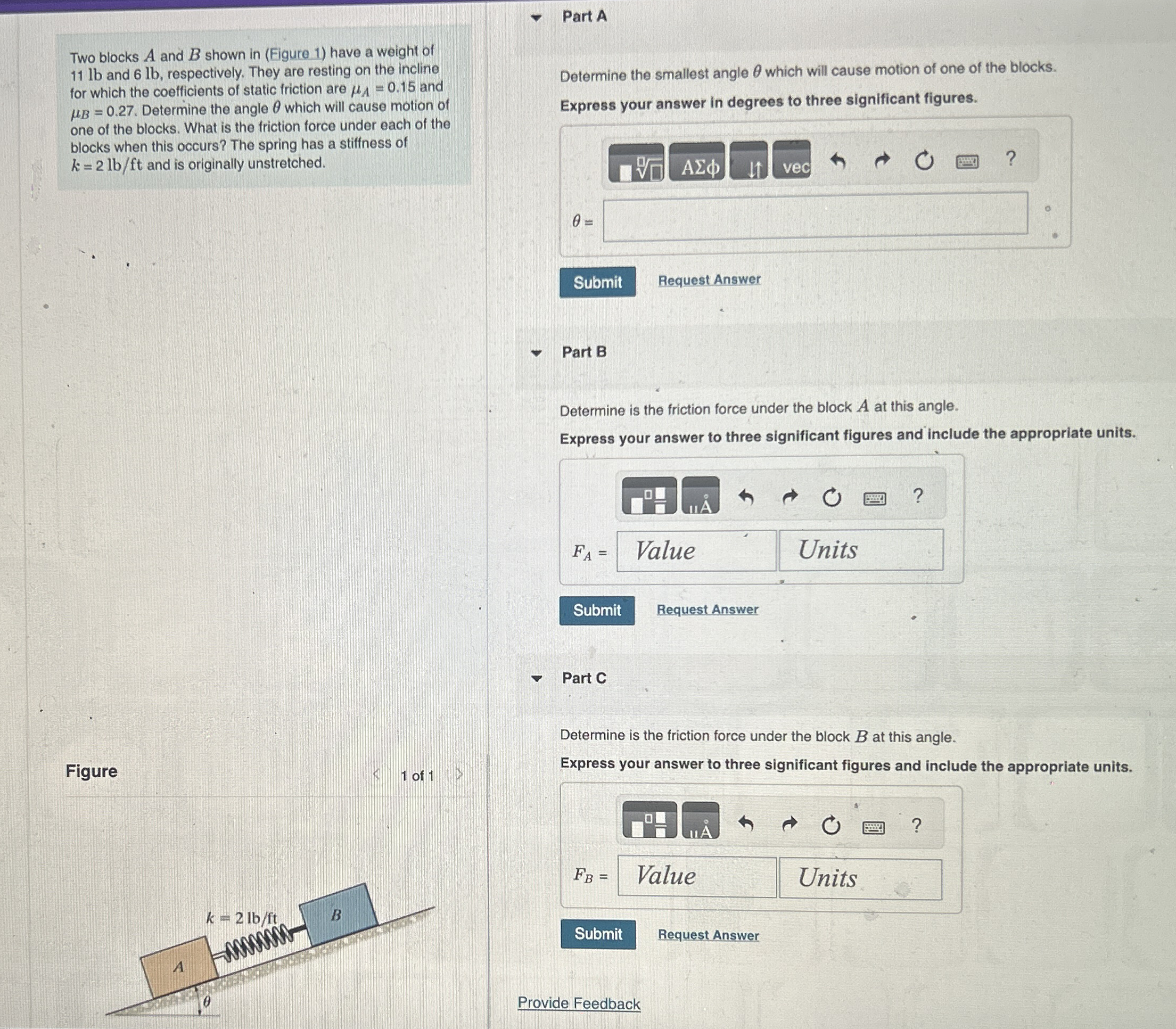

Two blocks A and $B$ shown in $($Eigure $1)$ have a weight of $11$ lb and $6$ lb $,$ respectively. They are resting on the incline for which the coefficients of static friction are ${}_A=0\mathrm{.}15$ and ${}_B=0\mathrm{.}27.$ Determine the angle $$ which will cause motion of one of the blocks. What is the friction force under each of the blocks when this occurs? The spring has a stiffness of $k=2l\frac{b}{f}t$ and is originally unstretched.

Figure

$1$ of $1$

$$

$$

Determine the smallest angle $$ which will cause motion of one of the blocks.

Express your answer in degrees to three significant figures.

$$

Request Answer

$$

Part B

Determine is the friction force under the block $A$ at this angle.

Express your answer to three significant figures and include the appropriate units.

$F_A=$

$$

Request Answer

Part C

Determine is the friction force under the block $B$ at this angle.

Express your answer to three significant figures and include the appropriate units.

$F_B=$

$$

Request Answer
