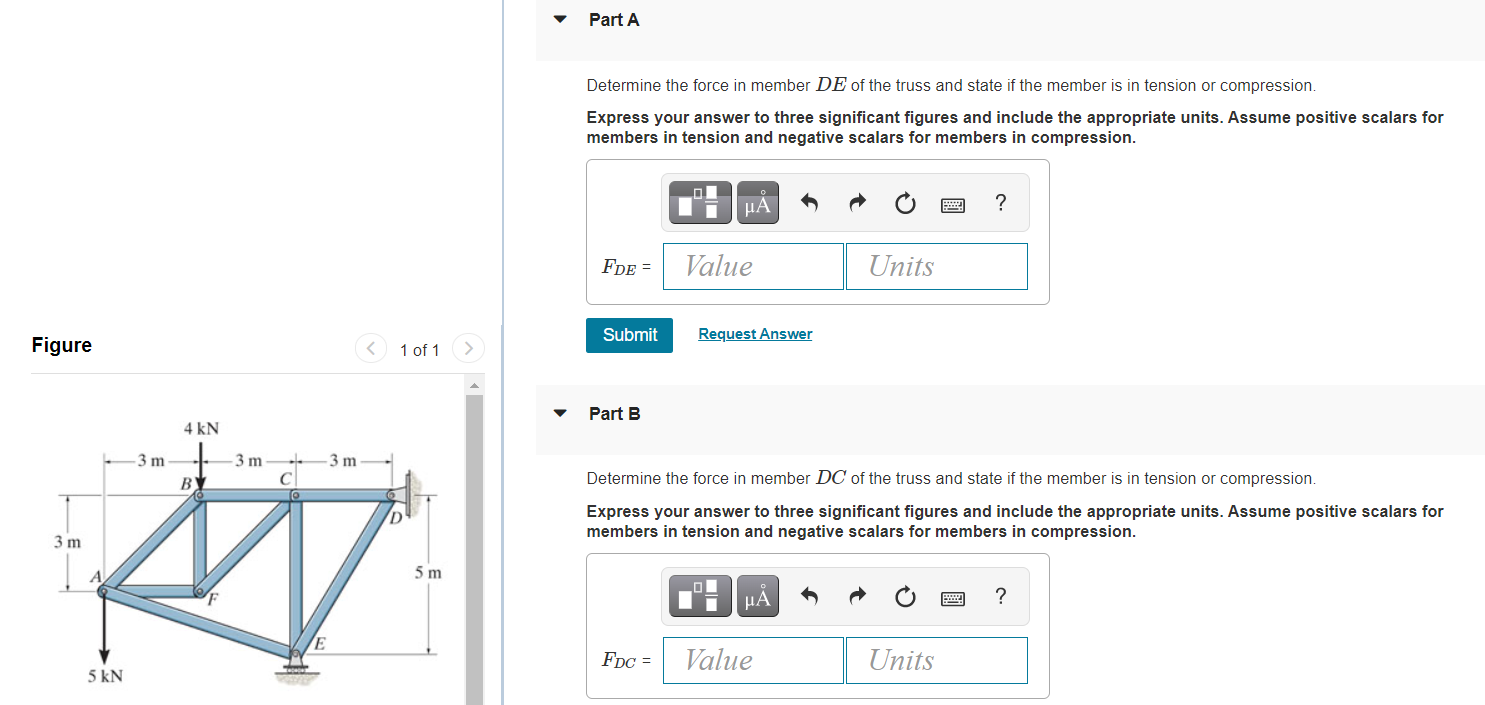

Question: Part C Determine the force in member ( E A ) of the truss and state if the member is in tension or

Part C

Determine the force in member

\ (

E A

\)

of the truss and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression.

Figure Part E

Determine the force in member

\ (

C F

\)

of the truss and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression.

\ [

_{

C F

} =

\]

\ [

[

\]

Request Answer

gure

Part F

Determine the force in member

\ (\

boldsymbol

{

C B

} \)

of the truss and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression.

\ [

_{

C B

} = [

\]

Request Answer

Part G Part G

Determine the force in member

\ (

B A

\)

of the truss and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression.

\ [

_{

B A

} = [

\]

Figure

Part H

Determine the force in member

\ (

F A

\)

of the truss and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression.

\ [

_{

F A

} = \

mid

\]

Determine the force in member

\ (

F A

\)

of the truss and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars fc members in tension and negative scalars for members in compression.

\ [

_{

F A

} =

\]

Figure

Part I

Determine the force in member

\ (

B F

\)

of the truss and state if the members are in tension or compression.

Express your answer to three significant figures and include the appropriate units. Assume positive scalars fc members in tension and negative scalars for members in compression.

\ [

_{

B F

} = \

text

{

Value

}

\]

$Part C Determine the force in member \ ( E A \ )$

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

FKC = Value Units Submit Request Answer Part C Determine the force in member CD of the Pratt truss, Express your answer to three significant figures and include the appropriate units. Enter negative...

Three point loads are applied to the Fink truss. Take F = F = 892 lb, F2 = 600 lb. (Figure 1)

Consider the truss shown in (Figure 1). Suppose that F = 9 KN . Part A Deturmine the magnitude of the vertical component of the reaction force at pin A. AEd vec ? Ay KN Submit Request Answer Part B...

Problem 6.7 Consider the truss shown in (Figures l! Part A Determine the force in member DE of the Drugs and state if the member is in tension or compression Express your answer to three significant...

Three point loads are applied to the Fink truss. Take Fi = F3 = 892 lb, F2 = 600 lb. (Figure 1) Figure 1 of 1 30 60% 60% 23 10 10 11 Part A Determine the force in member FG of the Fink truss, Express...

Ravioe Set P, -9 kN and P, - 12 kN. (Figure 1) Part A Determine the force in member AB, and stale ir the member is in tension or compression. Express your answer to three significant figures and...

Part B Determine the force in member EF of the space truss. Express your answer in pounds to three significant figures. Enter negative value in the case of compression and positive value in the case...

Part A Suppose that P = 250 lb. (Figure 1) Figure Determine the force in member AB of the truss. Express your answer in pounds to three significant figures. Enter negative value in the case of...

5.3.6 Figure 1 Suppose that P = 130 lb. -3 ft -3 ft 3 ft 4 ft 4 ft E Part B Part D Determine the force in member AC, and state if the member is in tension or compression. Express your answer to three...

Question 3 Consider the truss shown in the Following figure. Suppose that F: 5 kN. (a) Determine the force in member EF and state if the member is in tension or compression. (b) Determine the force...
