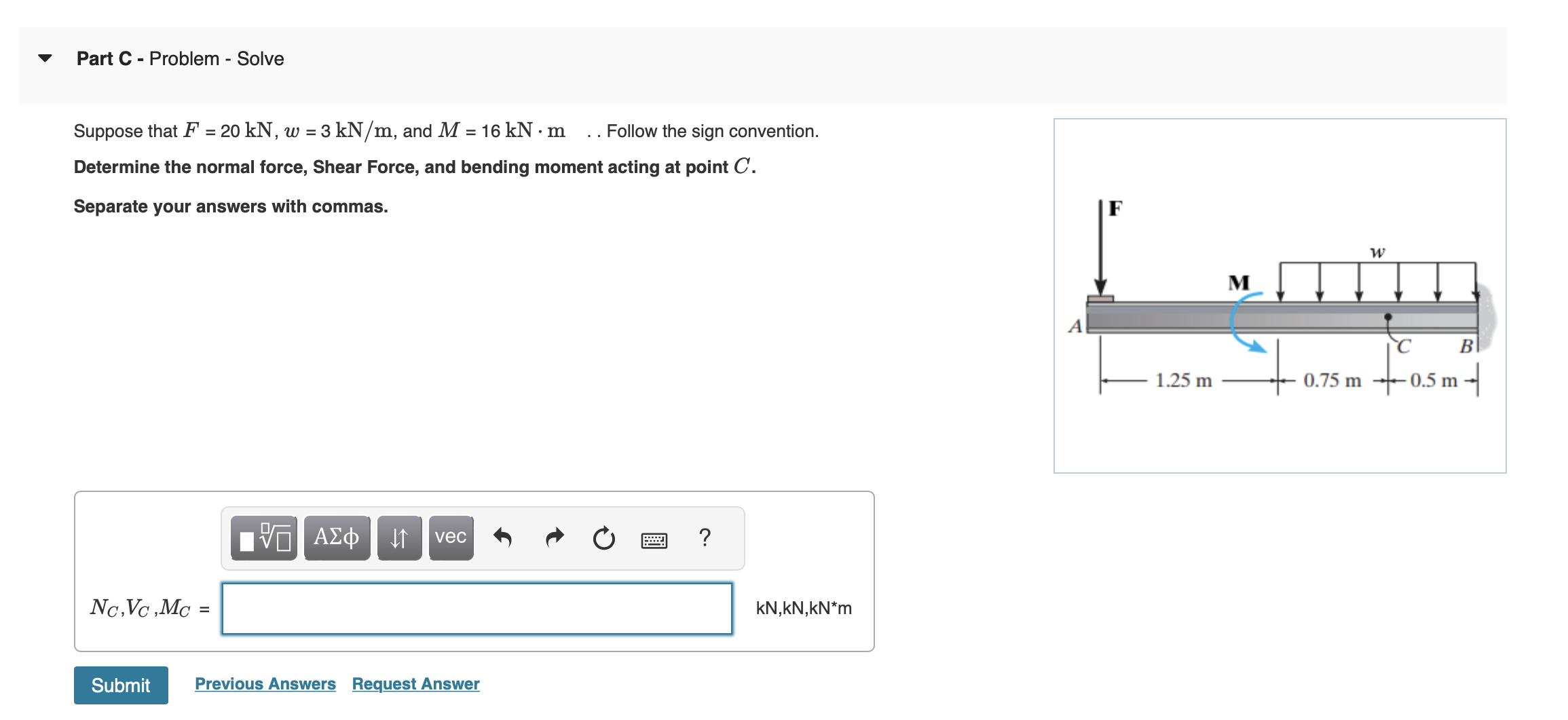

Question: Part C - Problem - Solve Suppose that F = 2 0 k N , w = 3 k N m , and M =

Part C - Problem - Solve
Suppose that F=20kN,w=3kNm, and M=16kN*m.. Follow the sign convention.
Determine the normal force, Shear Force, and bending moment acting at point C.
Separate your answers with commas.
NC,VC,MC=[]kN,kN,kN**m
Part C - Problem - Solve Suppose that F = 2 0 k N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
