Question: Part II (6 points) a) Find a minimal Boolean equation for the function show in the following truth table Remember to take advantage of the

 Part II (6 points) a) Find a minimal Boolean equation for

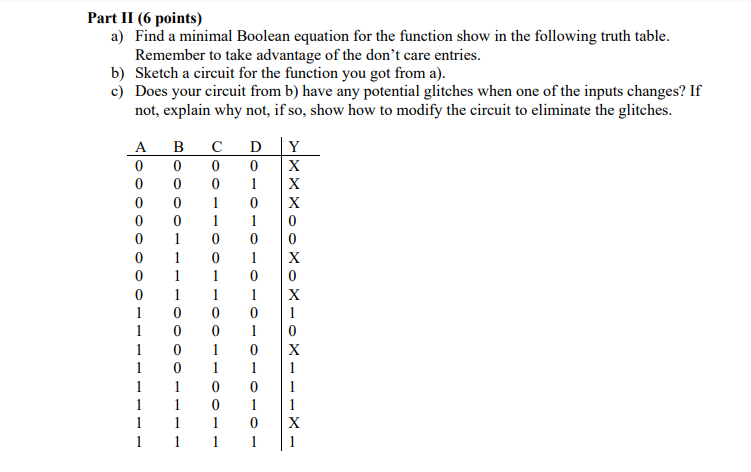

Part II (6 points) a) Find a minimal Boolean equation for the function show in the following truth table Remember to take advantage of the don't care entries. b) Sketch a circuit for the function you got from a). c) Does your circuit from b) have any potential glitches when one of the inputs changes? If not, explain why not, if so, show how to modify the circuit to eliminate the glitches. Y D 0 1 0 1 0 1 0 X 0 0 x 0 A 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 C 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 1 1 0 1 0 1 0 1
