Question: Part II . Longer problem focused on problem solving multiple steps. This problem will be graded based on process, clarity of work, and correct answer

Part II. Longer problem focused on problem solving multiple steps. This problem will be graded based
on process, clarity of work, and correct answer and units.

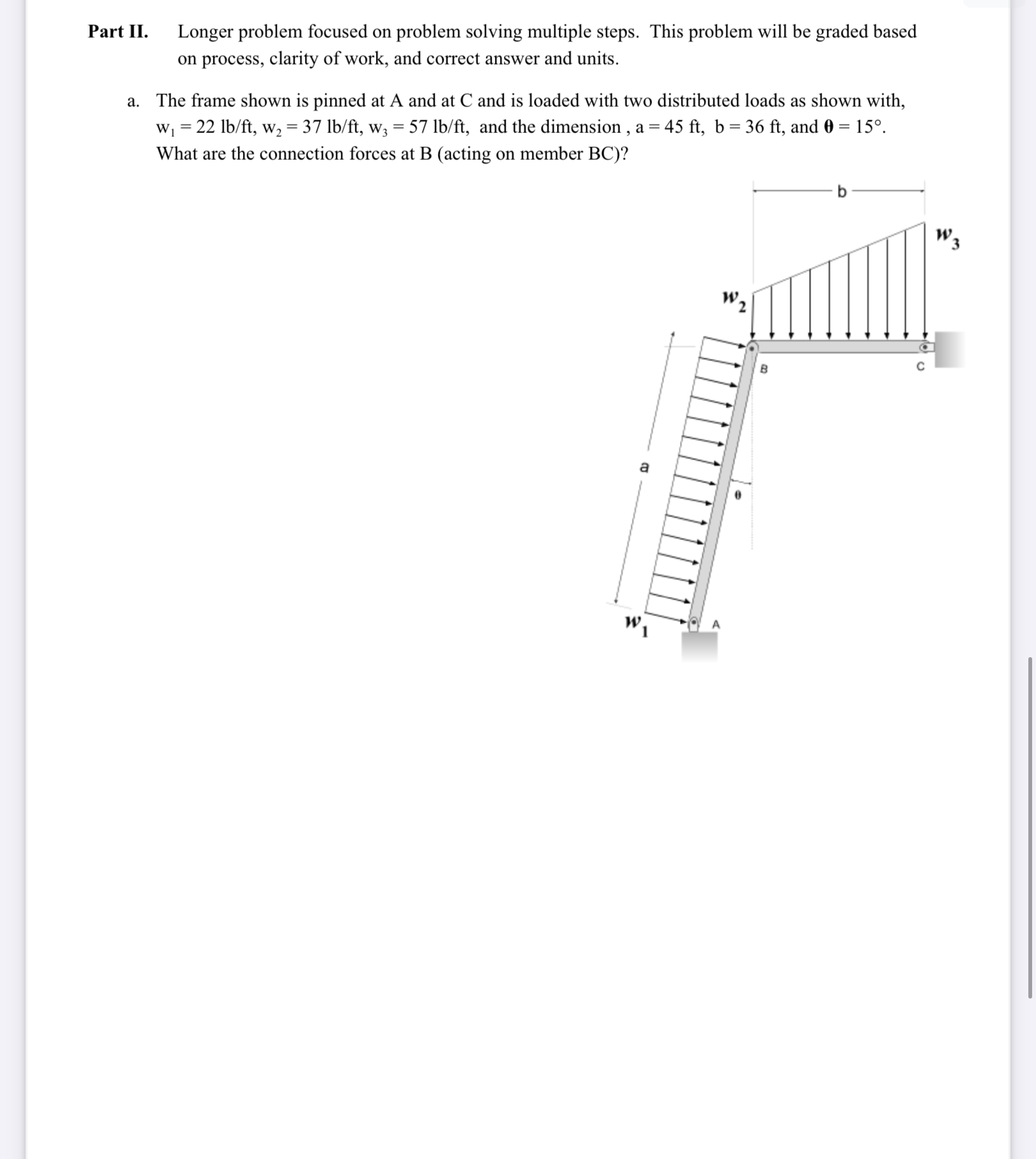

a. The frame shown is pinned at A and at C and is loaded with two distributed loads as shown with,
w1=22lbft,w2=37lbft,w3=57lbft, and the dimension, a=45ft,b=36ft, and =15.
What are the connection forces at B (acting on member BC )?
Part II . Longer problem focused on problem

Step by Step Solution

There are 3 Steps involved in it
