PICK ONE

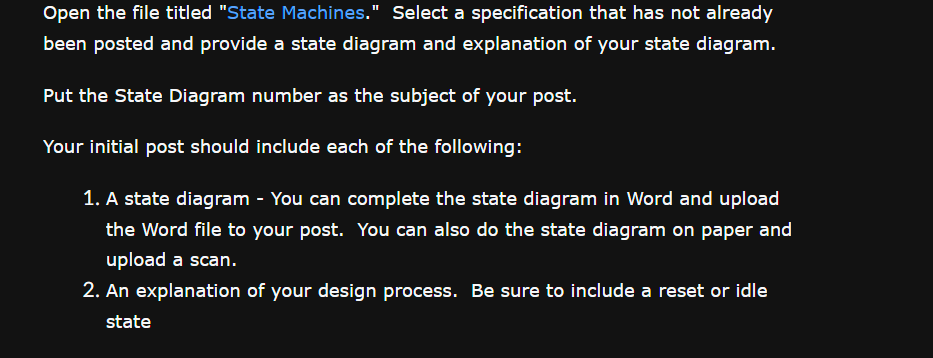

State Machines

Your state machine should decode the following serial bit patterns in the correct order, with one bit per clock cycle.

State Machine $1$: $000000$

State Machine $2$: $000001$

State Machine $3$: $000010$

State Machine $4$: $000011$

State Machine $5$: $000100$

State Machine $6$: $000101$

State Machine $7$: $000110$

State Machine $8$: $000111$

State Machine $9$: $001000$

State Machine $10$: $001001$

State Machine $11$: $010000$

State Machine $12$: $010001$

State Machine $13$: $010010$

State Machine $14$: $010011$

State Machine $15$: $010100$

State Machine $16$: $010101$

State Machine $17$: $010110$

State Machine $18$: $010111$

State Machine $19$: $011000$

State Machine $20$: $111001$

State Machine $21$: $110000$

State Machine $22$: $110001$

State Machine $23$: $110010$

State Machine $24$: $110011$

State Machine $25$: $110100$

State Machine $26$: $110101$

State Machine $27$: $110110$

State Machine $28$: $110111$

State Machine $29$: $111000$

State Machine $30$: $111001$
